Inhibitor Switch: Adjustment

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Release the shift lock using a screwdriver to shift the select lever to the "N" range.

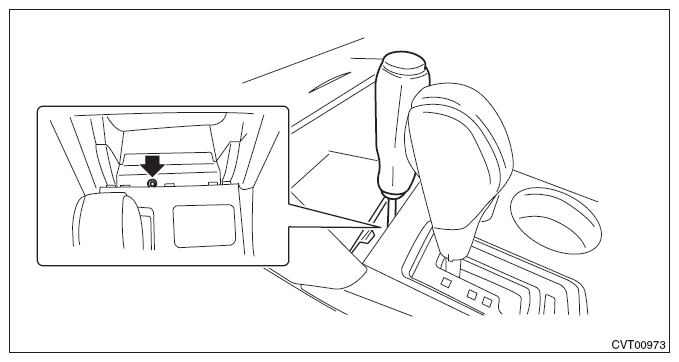

Fig 1: Identifying Shift Lock
Courtesy of SUBARU OF AMERICA, INC.
Remove the front exhaust pipe. Ref. to REMOVAL , Front Exhaust Pipe.
Remove the harness stay.

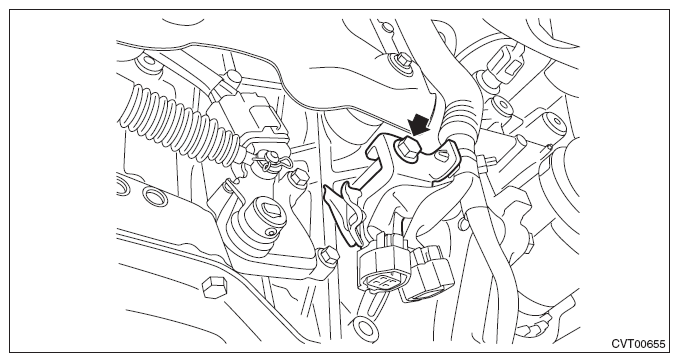

Fig 2: Identifying Harness Stay Bolt
Courtesy of SUBARU OF AMERICA, INC.
Loosen the two bolts holding the inhibitor switch.
Insert the ST vertically into the holes of the shifter arm and switch body.
ST 499267300 STOPPER PIN

Fig 3: Identifying ST Stopper Pin
Courtesy of SUBARU OF AMERICA, INC.
Tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Repeat the inspection of the inhibitor switch. If the inhibitor switch is determined to be "faulty", replace it.
