CVTF Cooler Pipe and Hose: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: When installing the CVTF cooler pipe assembly on vehicle side, be careful not to bend the A/C pipe.

Install the CVTF cooler pipe assembly to vehicle.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

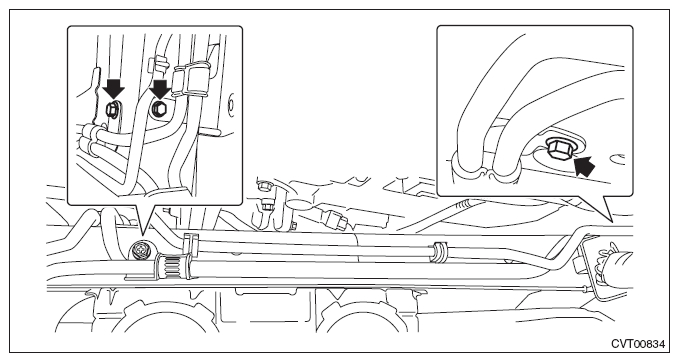

Fig 1: Identifying CVTF Cooler Pipe Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the A/C pipe to clip.
Install the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose. (OUTBACK model)
NOTE: Use new CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.

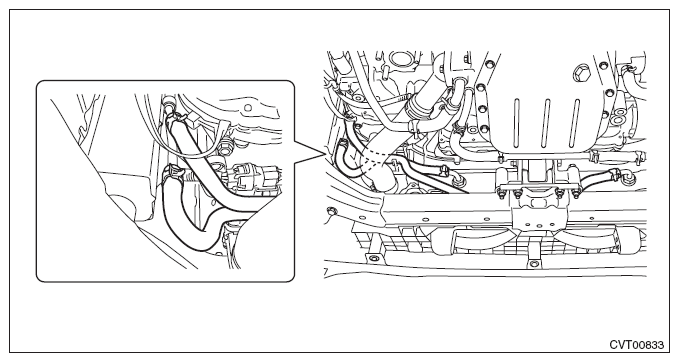

Fig 2: Identifying CVTF Cooler (Air Cool) Inlet And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the headlight assembly LH. (OUTBACK model) Ref. to INSTALLATION , Headlight Assembly.
Install the front bumper. (OUTBACK model) Ref. to INSTALLATION , Front Bumper.
Install the battery cable bracket, and install the battery cable clip to the bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 3: Identifying Battery Cable Clip And Battery Cable Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Install the CVTF CVT inlet hose and CVTF CVT outlet hose.
NOTE: Use new CVTF CVT inlet hose and CVTF CVT outlet hose.

Fig 4: CVTF CVT Inlet And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF radiator inlet hose and CVTF radiator outlet hose on radiator side.
NOTE: Use new CVTF radiator inlet hose and CVTF radiator outlet hose.

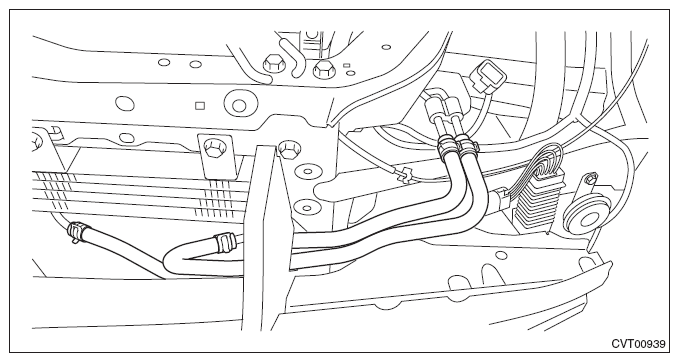

Fig 5: CVTF Radiator Inlet Hose And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to INSTALLATION , Front Exhaust Pipe.
Lower the vehicle.
Install the engine coolant reservoir tank. Ref. to INSTALLATION , Reservoir Tank.
Install the battery and battery box. Ref. to INSTALLATION , Battery.
Adjust the CVTF level and check there is no leakage. Ref. to ADJUSTMENT , CVTF.
