Section 7 (Engine Mechanical (H6DO)): V-belt: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
1. Carefully pull up the rear of collector cover at two positions (A).
2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.

  Fig 1: Removing Collector Cover
  Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
Loosen the nut (A).
Loosen the bolt (B).
Remove the V-belt (C).

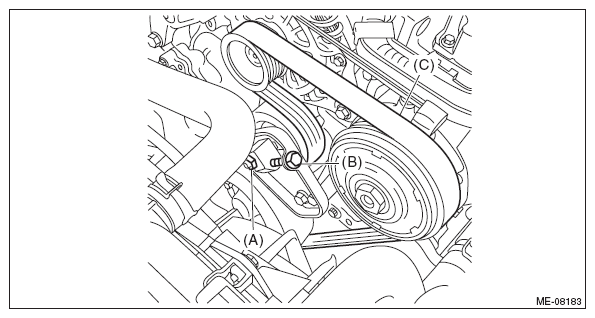

Fig 2: Identifying V-Belt Nut And Bolt
Courtesy of SUBARU OF AMERICA, INC.
