Air Intake Duct: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the clip which secures the air intake duct, and remove the air intake duct.

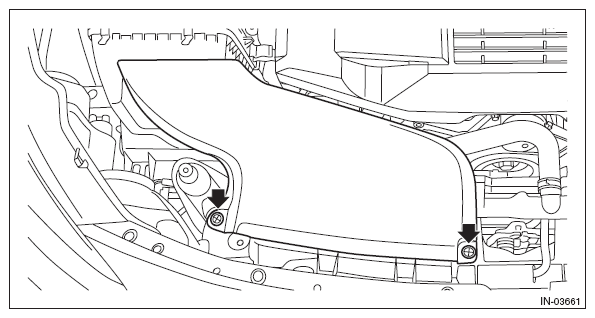

Fig 1: Identifying Air Intake Duct Screws
G10263856Courtesy of SUBARU OF AMERICA, INC.
