Crankshaft And Piston

WARNING: This page is about a different variant/trim than selected.

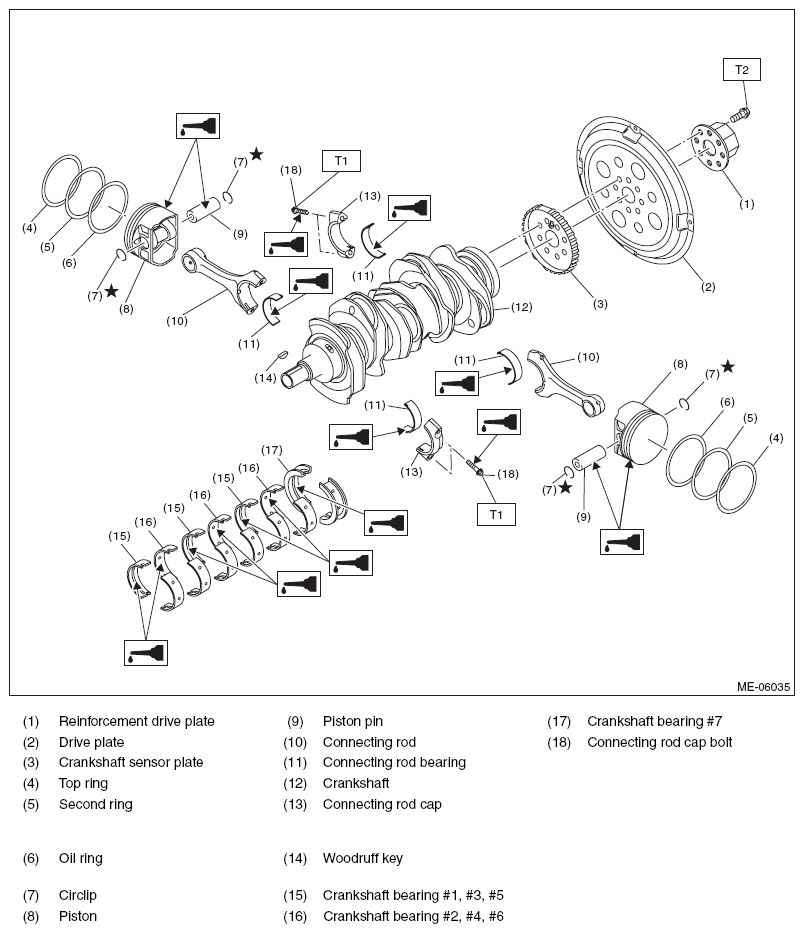

Fig 1: Exploded View Of Crankshaft And Piston Replacement Components
G11585947Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: Ref. to  INSTALLATION  , Cylinder Block.

T2: Ref. to  INSTALLATION  , Drive Plate.
