Drive Plate: Installation

WARNING: This page is about a different variant/trim than selected.

Temporarily install the drive plate and reinforcement drive plate.
Set the ST.
NOTE: Set the ST to the drive plate referring to the illustration.

ST 498497300 CRANKSHAFT STOPPER

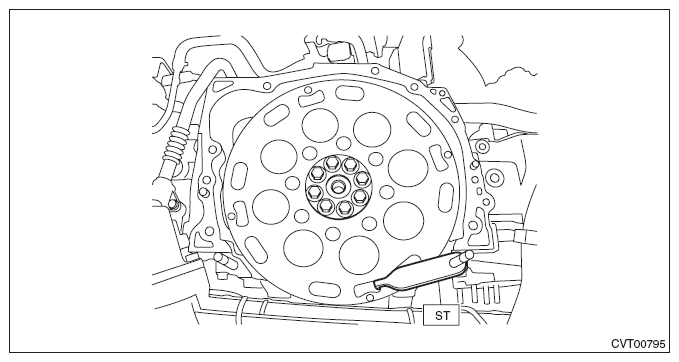

Fig 1: Setting ST To Drive Plate
Courtesy of SUBARU OF AMERICA, INC.
Tighten the drive plate mounting bolt in two stages.
NOTE: Fix the engine unit.
1. Tighten the drive plate mounting bolt.
  Tightening torque:

  10 N.m (1.0 kgf-m, 7.4 ft-lb)
2. While checking the tightening angle with the angle gauge, tighten the drive plate mounting bolts to the specified angle.
  Tightening angle:

  41° - 45°
Fig 2: Checking Tightening Angle Of Drive Plate Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
