Front Cushion Rubber

WARNING: This page is about a different variant/trim than selected.
  1. Fully open the front hood. Ref. to FRONT HOOD DAMPER STAY
    NOTE: Repair Contents.
  2. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
      Fig 1: Removing Collector Cover
      G11585612Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
    NOTE: Repair Contents.
  4. Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
  5. Loosen the clamp (A) securing the air intake boot.
  6. Remove the bolt (B) securing the air intake boot to the collector cover bracket.
    Fig 2: Identifyng Clamp Securing Air Intake Boot
    G11585613Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.
    CAUTION: Be careful not to allow the air intake boot to contact the air conditioner pipe.
    Fig 3: Removing Air Intake Boot (Rear)
    G11585614Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the throttle body. Ref. to REMOVAL , Throttle Body.
  9. Disconnect the sensor harness connector.

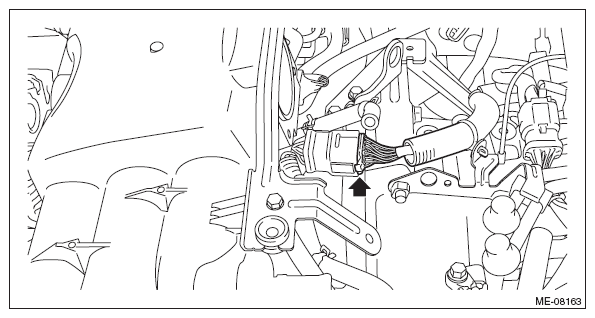

    Fig 4: Identifying Engine Harness Connector
    G10263923Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the engine harness connector (A) from the engine hanger bracket, and remove the engine hanger bracket.

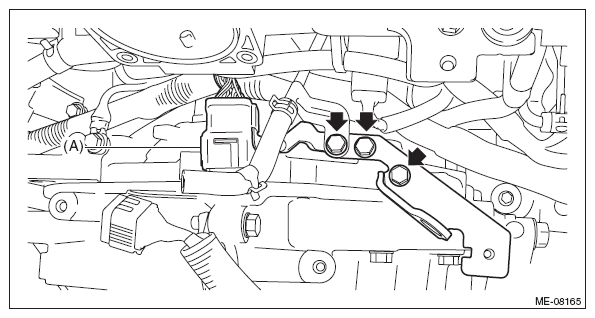

    Fig 5: Identifying Engine Hanger Bracket Bolts
    G10263924Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the collector cover bracket from the intake manifold.
    Fig 6: Removing Collector Cover Bracket From Intake Manifold
    G10263925Courtesy of SUBARU OF AMERICA, INC.
  12. Disconnect the engine harness connector.
    NOTE: This procedure is required to prevent the ST from contacting with the connectors in the next step.

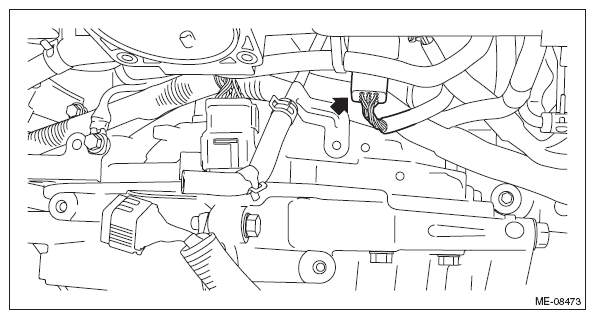

    Fig 7: Identifying Engine Harness Connector
    G10263926Courtesy of SUBARU OF AMERICA, INC.
  13. Attach the ST.

    ST 18360AA020 HANGER

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

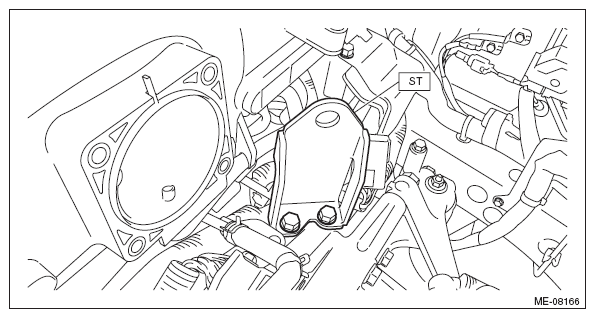

    Fig 8: Attaching ST
    G10263927Courtesy of SUBARU OF AMERICA, INC.
  14. Support the engine with a lifting device and wire ropes.
    Fig 9: Supporting Engine With Lifting Device And Wire Ropes
    G08316851Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the bolts and nuts securing the front cushion rubber to the front mounting bracket.

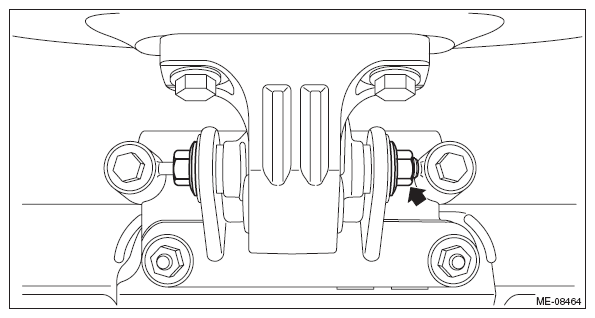

    Fig 10: Identifying Front Cushion Rubber Bolts
    G10263959Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the bolts securing the front cushion rubber to the chain cover, and remove the front cushion rubber.

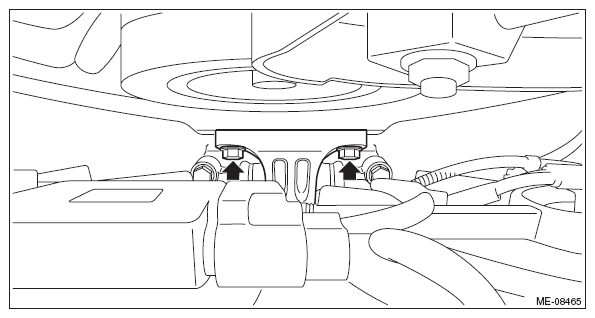

Fig 11: Identifying Bolts Securing Front Cushion Rubber To Chain Cover
G10263960Courtesy of SUBARU OF AMERICA, INC.
