Main Mounting Bracket & Main Cushion Rubber

WARNING: This page is about a different variant/trim than selected.
  1. Install the main cushion rubber to the main mounting bracket.

    Tightening torque:

    65 N.m (6.6 kgf-m, 47.9 ft-lb)

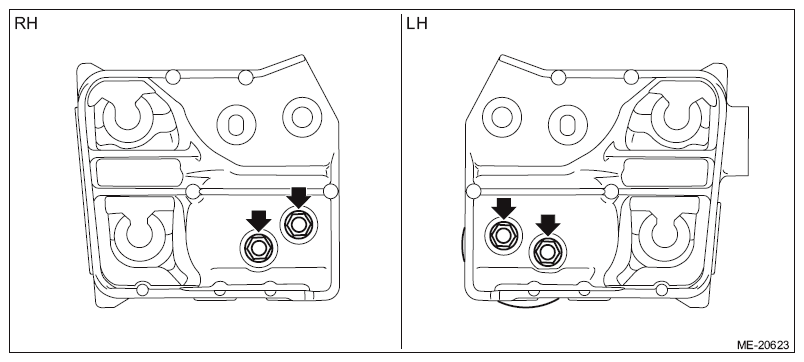

    Fig 1: Identifying Main Cushion Rubber Bolts
    G11566359Courtesy of SUBARU OF AMERICA, INC.
  2. Install the main mounting bracket to the cradle. Ref. to INSTALLATION , Electric Power Steering Gearbox.
  3. Install the cradle. Ref. to INSTALLATION , Cradle.
  4. Connect the ground terminal to battery sensor. Ref. to BATTERY
    NOTE: Repair Contents.
