Electric Power Steering Gearbox: Installation

Before installation, check the steering gearbox. <Ref. to INSPECTION , Electric Power Steering Gearbox.>
Install the steering gearbox assembly by tightening the bolts through the stiffener to the specified torque.
CAUTION: Be careful not to damage the steering gearbox assembly boot.

Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

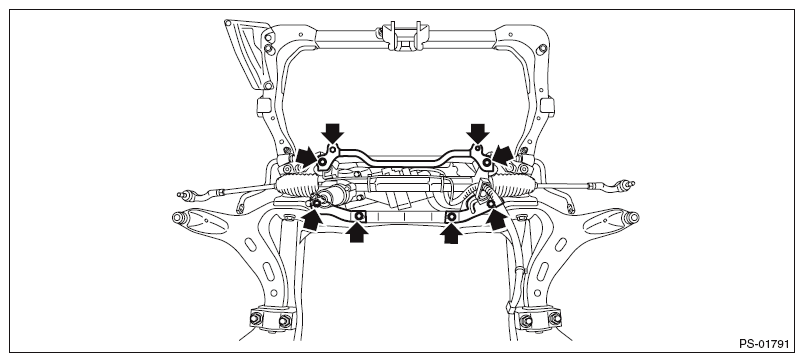

Fig 1: Locating Steering Gearbox Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the main mounting bracket in the numerical order.
1. Temporarily tighten the main mounting bracket in the numerical order.
  Tightening torque:

  10 N.m (1 kgf-m, 7.4 ft-lb)
2. Tighten the main mounting bracket in the numerical order.
  Tightening torque:

  60 N.m (6.1 kgf-m, 44.3 ft-lb)

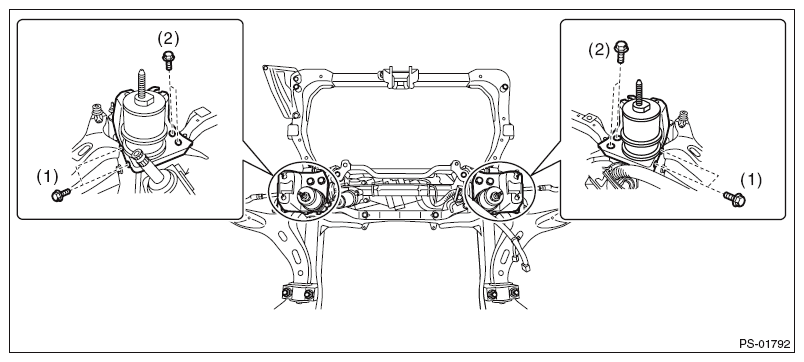

Fig 2: Main Mounting Bracket Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the cradle. <Ref. to INSTALLATION , Cradle.>
Install the universal joint assembly - steering. <Ref. to INSTALLATION , Universal Joint.>
CAUTION:
- Install the cradle first before tightening the universal joint assembly - steering to avoid the steering effort from becoming heavy.
- Be sure to follow the tightening order and tightening torque of the universal joint assembly - steering to avoid the steering effort from becoming heavy. After confirming that the steering column position is in the neutral position, tighten the universal joint assembly - steering.
- Always place the tilt lever to the lock position after the steering column is adjusted.
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
After adjusting toe-in and steering angle, tighten the lock nut on tie-rod end.
CAUTION:
When the wheel alignment has been adjusted, perform the following adjustment.
- Lane keep assist learning value clear (model with EyeSight): <Ref. to OPERATION , Clear Active Lane Keep System Learning Value.>
- VDC sensor midpoint setting mode: <Ref. to ADJUSTMENT , VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).>
Tightening torque:

85 N.m (8.7 kgf-m, 62.7 ft-lb)

NOTE: When adjusting toe-in, hold the boot - steering gearbox as shown to prevent it from being rotated or twisted. If it becomes twisted, straighten it.

Fig 3: Holding Boot - Steering Gearbox
Courtesy of SUBARU OF AMERICA, INC.
