Front Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Install the bracket to the cradle.
Tightening torque:

65 N.m (6.6 kgf-m, 47.9 ft-lb)

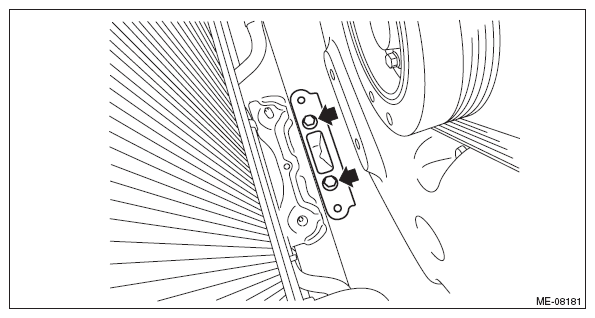

Fig 1: Identifying Bracket To Cradle Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the front mounting bracket to the cradle and the bracket.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

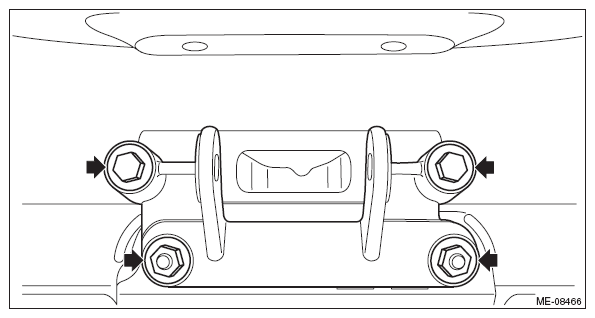

Fig 2: Identifying Front Cradle Mounting Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the front cushion rubber. Ref. to FRONT CUSHION RUBBER , INSTALLATION, Engine Mounting.
Install the radiator fan and fan motor assembly. Ref. to INSTALLATION , Radiator Fan and Fan Motor Assembly.
