Front Cushion Rubber

WARNING: This page is about a different variant/trim than selected.

Set the front cushion rubber, and install the bolts securing the front cushion rubber to the chain cover.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

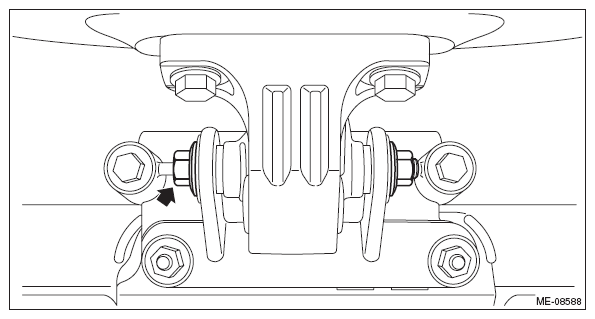

Fig 1: Identifying Front Cushion Rubber Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts and nuts securing the front cushion rubber to the front mounting bracket.
Tightening torque:

45 N.m (4.6 kgf-m, 33.2 ft-lb)

Fig 2: Identifying Front Mounting Bracket Cushion Rubber Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the lifting device and wire ropes.

Fig 3: Identifying Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.

Fig 4: Identifying ST
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine harness connector.

Fig 5: Identifying Engine Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover bracket to the intake manifold.
Tightening torque:

6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

Fig 6: Installing Collector Cover Bracket To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Install the engine hanger bracket, and install the engine harness connector (A) to the engine hanger bracket.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 7: Identifying Engine Hanger Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the sensor harness connector.

Fig 8: Identifying Sensor Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body. Ref. to INSTALLATION , Throttle Body.
Install the air intake boot. Ref. to INSTALLATION , Air Intake Boot.
Install the air intake duct. Ref. to INSTALLATION , Air Intake Duct.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Install the collector cover.
Set the front hood to the normal position. Ref. to FRONT HOOD DAMPER STAY
NOTE: Repair Contents.
Close the front hood.
