Crank Pulley: Installation

WARNING: This page is about a different variant/trim than selected.

Clean the crankshaft thread using compressed air.
Install the crank pulley.
Apply engine oil to the crank pulley bolt seat and thread.
Use the ST to lock the crank pulley, and tighten the crank pulley bolt.
NOTE: After tightening, if engine oil is spilt onto the crank pulley bolt or the crank pulley, wipe it off with a cloth.

ST1 18355AA000 PULLEY WRENCH

ST2 18334AA000 PULLEY WRENCH PIN SET

Tightening torque:

195 N.m (19.9 kgf-m, 143.8 ft-lb)

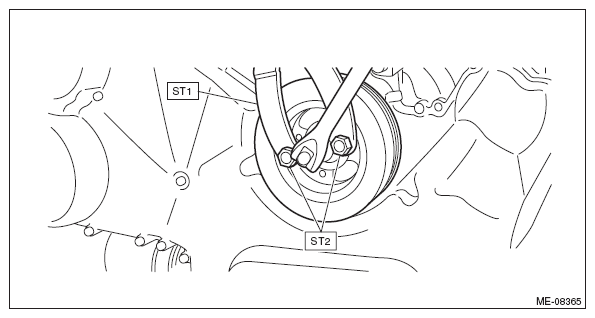

Fig 1: Installing Crank Pulley Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Ref. to INSTALLATION , V-belt.
