Section 7 (Engine Mechanical (H6DO)): V-belt: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

When reusing the V-belt, wipe off dust and water with cloth.
Do not use the V-belt if there is any oil, grease or coolant on the belt.
Be careful not to rub the belt end surface with bare hands; exposed core may cause injury.
Wipe off any dust, oil and water on the groove of each pulley with cloth.

Make sure that the spline of key (B) on shaft (A) matches with key groove (C), tighten the nut (D) to 1 N.m (0.1 kgf-m, 0.7 ft-lb), and temporarily assemble the tensioner assembly.

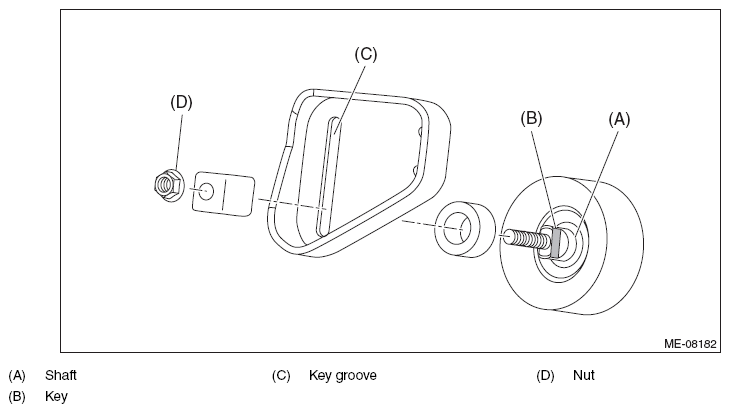

Fig 1: Exploded View Of Tensioner Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt (C), and adjust the bolt (B) so as to obtain the specified belt tension. Ref. to INSPECTION , V-belt.
CAUTION: After installing the V-belt, check the V-belt tension and adjust it if necessary by loosening the nuts and tensioner pulley, then reinstall the belt.
Tighten the nut (A).
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

Fig 2: Identifying V-Belt Nut And Bolt
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: V-Belt Routing Diagram
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Ref. to INSTALLATION , Air Intake Duct.
Install the collector cover.
