Water Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    Fig 1: Removing Collector Cover
    G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
    NOTE: Repair Contents.
  3. Remove the chain cover. Ref. to REMOVAL , Chain Cover.
  4. Remove the timing chain assembly. Ref. to REMOVAL , Timing Chain Assembly.
  5. Remove the water pump from the oil pan upper.

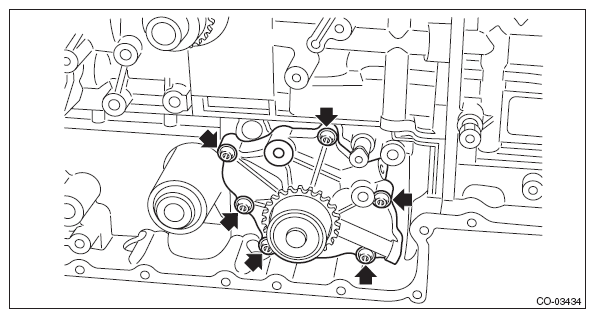

Fig 2: Identifying Water Pump Bolts
G10264163Courtesy of SUBARU OF AMERICA, INC.
