Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the chain cover. Ref. to REMOVAL , Chain Cover.
Remove the timing chain assembly. Ref. to REMOVAL , Timing Chain Assembly.
Remove the oil pan lower. Ref. to REMOVAL , Oil Pan.
Remove the stiffener and the oil pump.

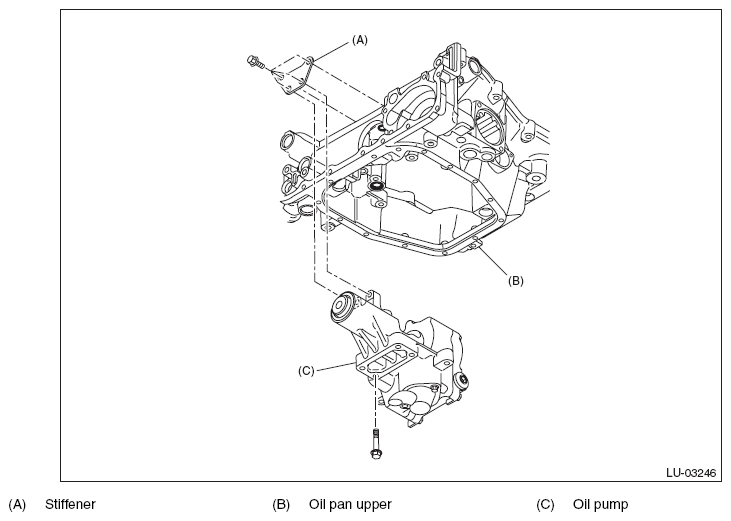

Fig 1: Removing Stiffener And Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove the strainer from the oil pump.
Remove the O-ring from oil pan upper.

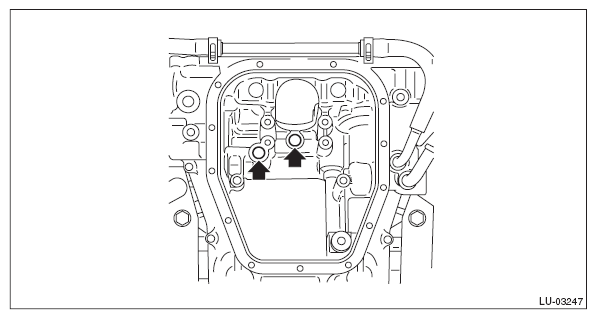

Fig 2: Identifying Upper Oil Pan O-Ring
Courtesy of SUBARU OF AMERICA, INC.
