EGR Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    Fig 1: Pulling Up Rear Of Collector Cover At Positions
    G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  3. Loosen the clamp (A) securing the air intake boot.
  4. Remove the bolt (B) securing the air intake boot to the collector cover bracket.
    Fig 2: Loosening Clamp Securing Air Intake Boot
    G11585613Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.
    CAUTION: Be careful not to allow the air intake boot to contact the air conditioner pipe.
    Fig 3: Removing Air Intake Boot From Throttle Body And Air Cleaner Case (Rear)
    G11585614Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the EGR pipe A. <Ref. to EGR PIPE A , REMOVAL, EGR Pipe.>
  7. Disconnect the connector (A) from EGR control valve, and remove the EGR control valve.

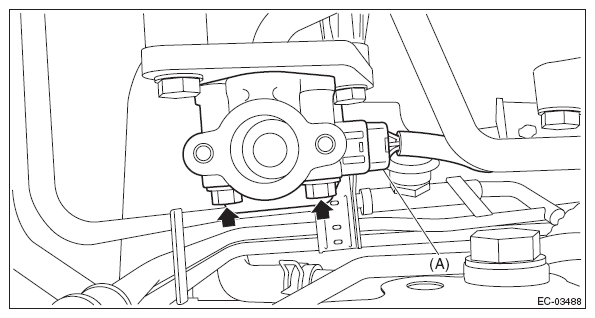

Fig 4: Locating EGR Control Valve Bolts
G10263813Courtesy of SUBARU OF AMERICA, INC.
