EGR Pipe A

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    Fig 1: Pulling Up Rear Of Collector Cover At Positions
    G11585612Courtesy of SUBARU OF AMERICA, INC.
  3. Loosen the clamp (A) securing the air intake boot.
  4. Remove the bolt (B) securing the air intake boot to the collector cover bracket.
    Fig 2: Loosening Clamp Securing Air Intake Boot
    G11585613Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.
    CAUTION: Be careful not to allow the air intake boot to contact the air conditioner pipe.
    Fig 3: Removing Air Intake Boot From Throttle Body And Air Cleaner Case (Rear)
    G11585614Courtesy of SUBARU OF AMERICA, INC.
  6. Lift up the vehicle.
  7. Remove the under cover. <Ref. to REMOVAL , Front Under Cover.>
  8. Remove the bolts securing the EGR pipe A to the cylinder head.

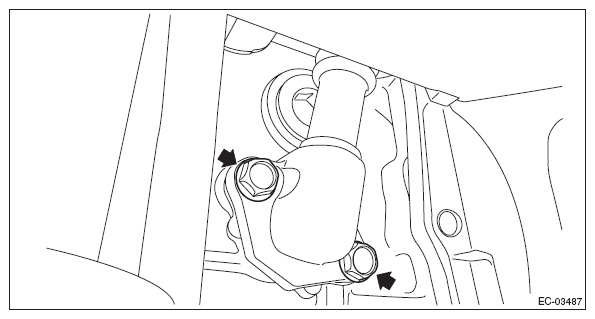

    Fig 4: Locating Bolts Securing EGR Pipe A To Cylinder Head
    G10263818Courtesy of SUBARU OF AMERICA, INC.
  9. Lower the vehicle.
  10. Remove the bolts securing the EGR pipe A to the EGR control valve, and pull out the EGR pipe A upward.

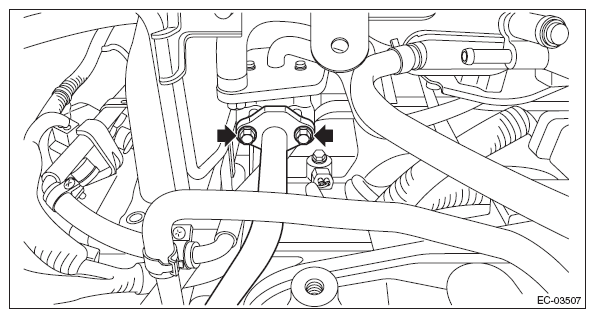

Fig 5: Locating Bolts Securing EGR Pipe A To EGR Control Valve
G10263819Courtesy of SUBARU OF AMERICA, INC.
