Section 1 (Emission Control Systems (Aux. Emission Control Devices) (H6DO)): Canister: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the rear wheel LH. <Ref. to REMOVAL , Tire and Wheel.>
Lift up the vehicle.
Remove the rear mud guard LH. <Ref. to REMOVAL , Mud Guard.>
Disconnect the quick connectors of the vent tube (A), canister drain tube (B) and purge tube (C), and remove the tubes from tube clamp (D).
NOTE: Disconnect the quick connector as shown in the figure.
- Vent tube (A) and canister drain tube (B) (Slider color is red or green.)

  Fig 1: Disconnecting Quick Connector (Slider Color Red Or Green)
  Courtesy of SUBARU OF AMERICA, INC.
- Vent tube (A) and canister drain tube (B) (Slider color is white.)

  Fig 2: Disconnecting Quick Connector (Slider Color Red White)
  Courtesy of SUBARU OF AMERICA, INC.
- Purge tube (C)
Fig 3: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

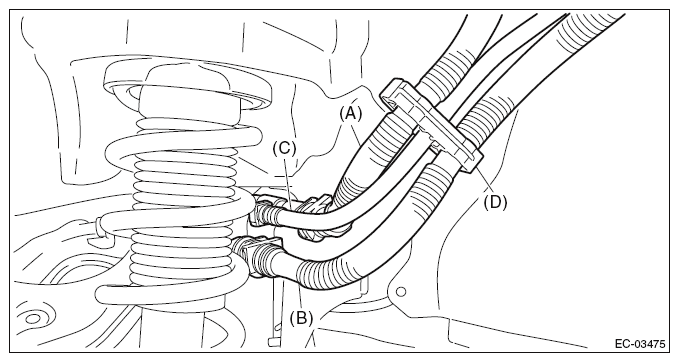

Fig 4: Vent Tube, Canister Drain Tube And Purge Tube
Courtesy of SUBARU OF AMERICA, INC.

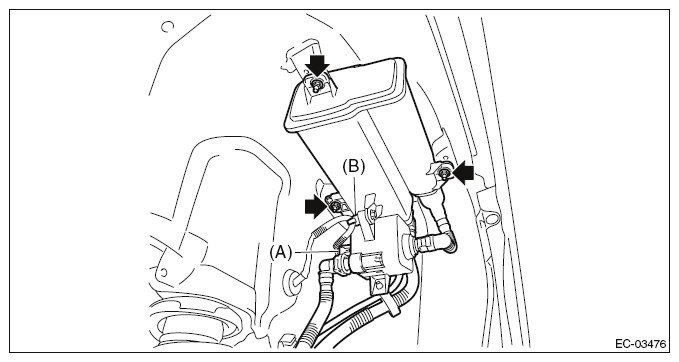

Disconnect the connector (A) from the canister and remove the harness clip (B).
Remove the canister.

Fig 5: Disconnecting Connector From Canister
Courtesy of SUBARU OF AMERICA, INC.

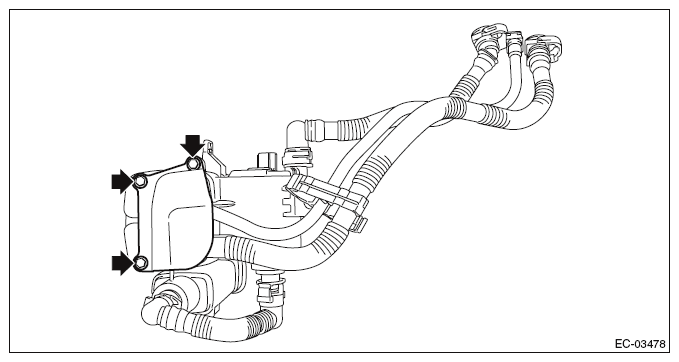

Remove the canister protector.

Fig 6: Locating Canister Protector Bolts
Courtesy of SUBARU OF AMERICA, INC.

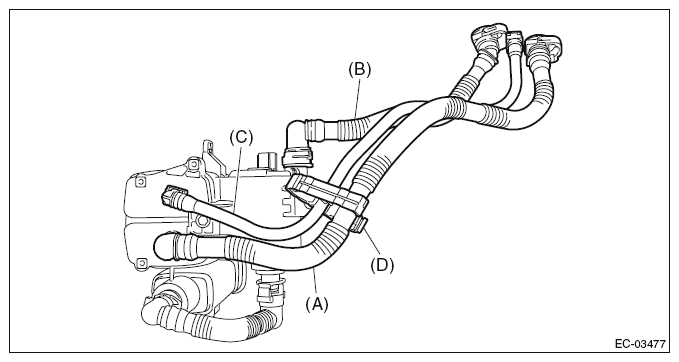

Disconnect the vent tube (A), canister drain tube (B) and purge tube (C).
NOTE: Disconnect the quick connector as shown in the figure.
- Vent tube (A) and canister drain tube (B) (Slider color is red or green.)

  Fig 7: Disconnecting Quick Connector (Slider Color Red Or Green)
  Courtesy of SUBARU OF AMERICA, INC.
- Vent tube (A) and canister drain tube (B) (Slider color is white.)

  Fig 8: Disconnecting Quick Connector (Slider Color White)
  Courtesy of SUBARU OF AMERICA, INC.
- Purge tine (C)

  Fig 9: Disconnecting Quick Connector
  Courtesy of SUBARU OF AMERICA, INC.
Remove the hose clamp (D)

Fig 10: Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the drain tube (A).
NOTE: Disconnect the quick connector as shown in the figure.

Fig 11: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

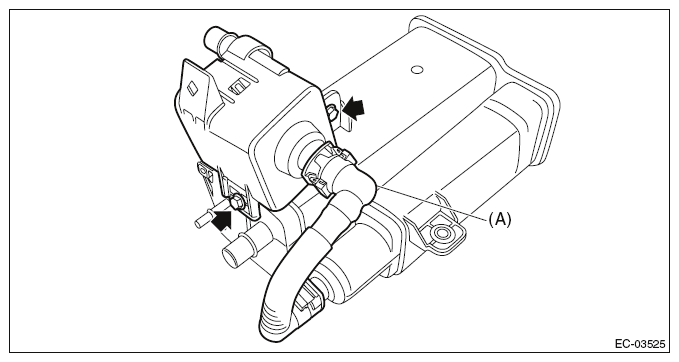

Remove the leak check valve assembly from the canister.

Fig 12: Removing Leak Check Valve Assembly From Canister
Courtesy of SUBARU OF AMERICA, INC.
