Mud Guard: Removal

  1. Lift up the vehicle.
  2. Remove the wheels.
  3. Remove the clips, then remove the mud guard.

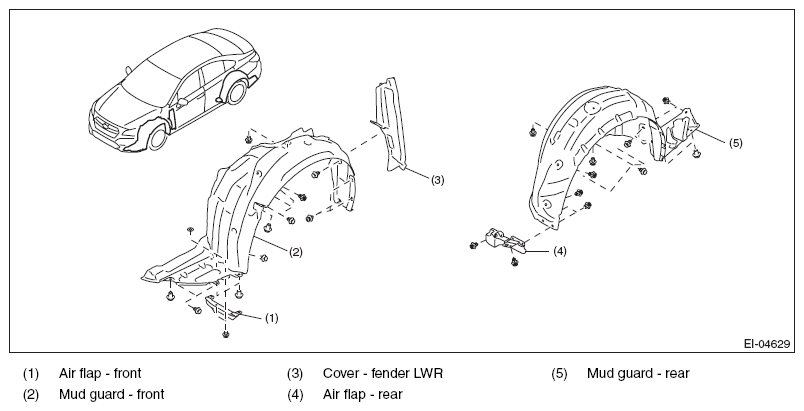

Fig 1: Removing Mud Guard
G11567370Courtesy of SUBARU OF AMERICA, INC.
