Engine Cooling System (H4DO): Radiator: Installation

Install the radiator lower cushion to the vehicle body.

Fig 1: Identifying Lower Radiator Cushion
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions.
Remove the ropes or other means used to secure the condenser to the vehicle.

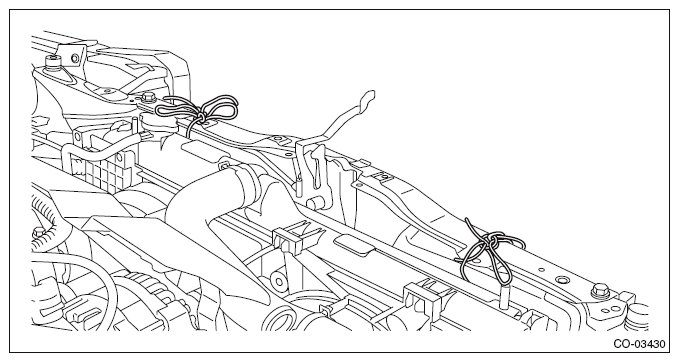

Fig 2: Removing Ropes That Secure Condenser To Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Temporarily tighten the bolts securing the condenser upper bracket to the radiator.

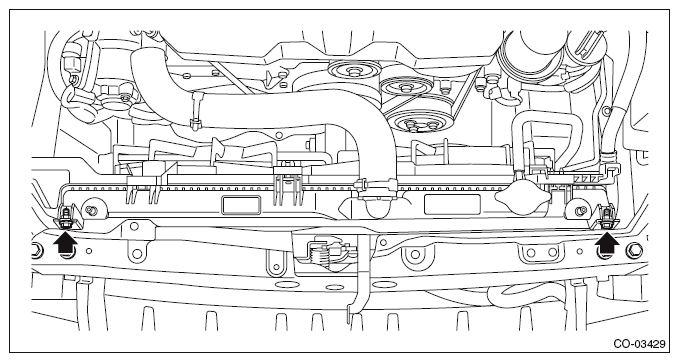

Fig 3: Identifying Condenser Upper Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Position the condenser lower bracket, and install the bolts securing the condenser lower bracket to the condenser.
Tightening torque:

3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

Fig 4: Identifying Condenser Lower Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

Using the ST, tighten the bolts securing the condenser lower bracket to the radiator.

ST 73099SG000 SPECIAL TOOL CONDENSER

Tightening torque:

Calculation formula

T = L/(100 mm (3.94 in)+L) x 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
T: Tightening torque
L: Effective length of torque wrench

NOTE: If the effective length of the torque wrench used is unknown, consult the manufacturer of the torque wrench.

Fig 5: Tightening Condenser Lower Bracket Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tighten the bolts securing the condenser upper bracket to the radiator.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 6: Identifying Condenser Upper Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

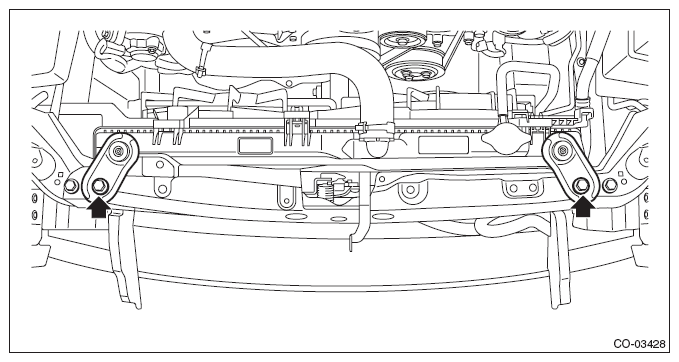

Fig 7: Identifying Radiator Upper Brackets Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hose to the water pipe assembly.

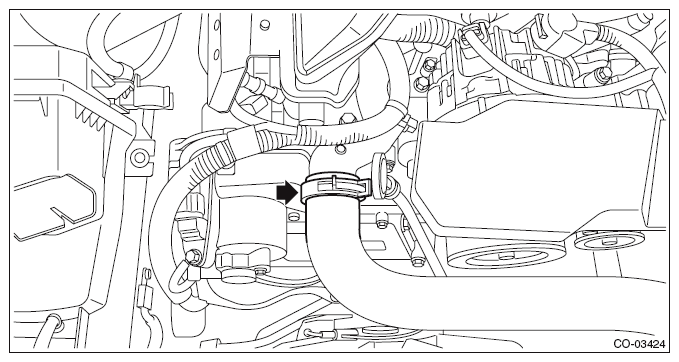

Fig 8: Identifying Radiator Inlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) to the radiator main fan motor and the connector (B) to the radiator sub fan motor connector.

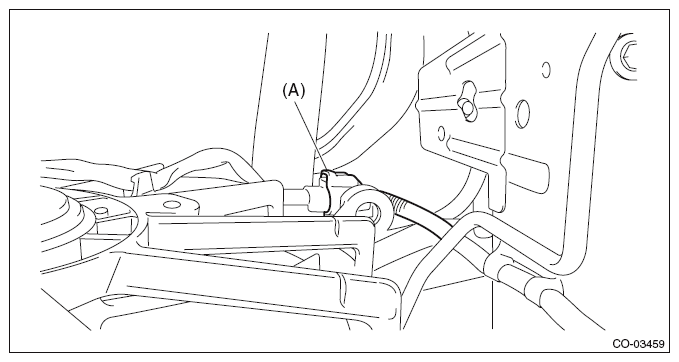

Fig 9: Identifying Radiator Main Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. Ref. to INSTALLATION , Reservoir Tank.

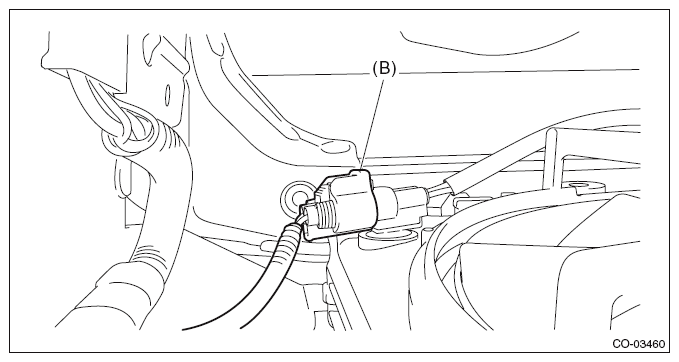

Fig 10: Identifying Radiator Sub Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Attach the grille bracket.

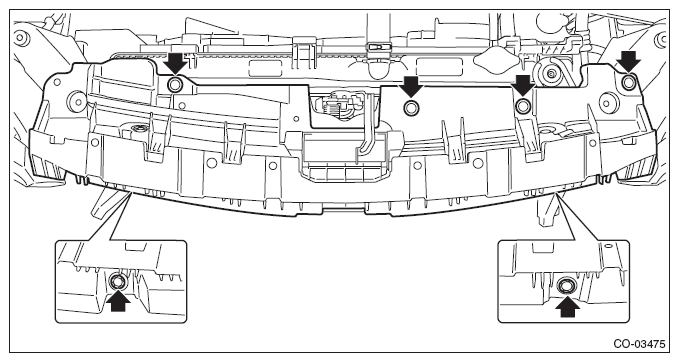

Fig 11: Identifying Grille Bracket Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the active grille shutter. Ref. to INSTALLATION , Active Grille Shutter.
Install the front bumper. Ref. to INSTALLATION , Front Bumper.
Install the air intake duct. Ref. to INSTALLATION , Air Intake Duct.
Lift up the vehicle.
Connect the radiator outlet hose.

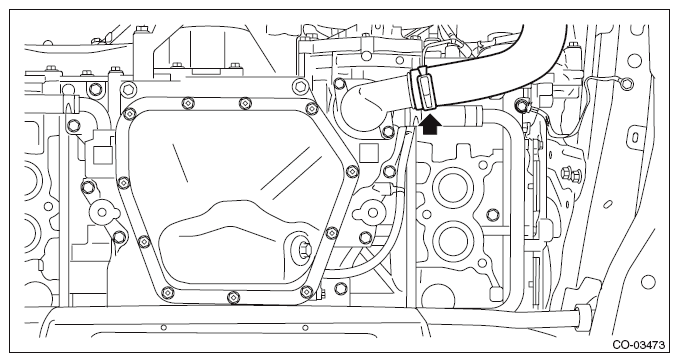

Fig 12: Identifying Radiator Outlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to INSTALLATION , Front Exhaust Pipe.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Fill engine coolant. Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
