Reservoir Tank: Installation

  1. Install the bolts securing the reservoir tank to the radiator fan shroud.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  2. Insert the over flow hose (A) connected to the radiator filler neck into the reservoir tank.

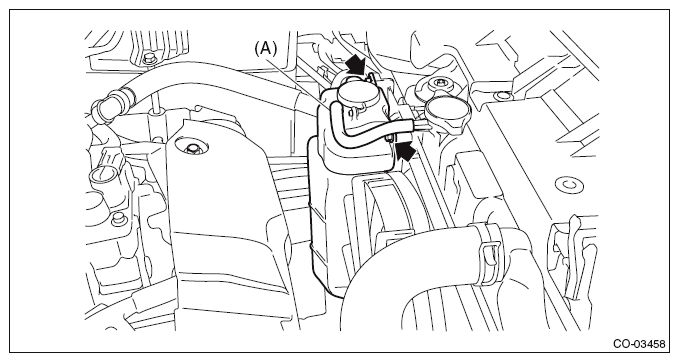

Fig 1: Identifying Reservoir Tank Bolts And Over Flow Hose
G10263046Courtesy of SUBARU OF AMERICA, INC.
