Front Fog Light Assembly: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Lift up the vehicle.
Remove the clips, and turn over the mud guard - front.

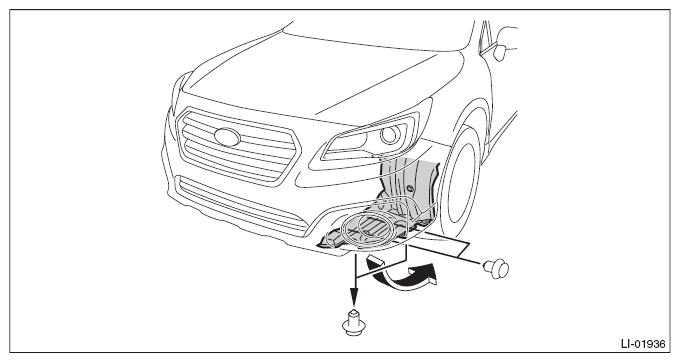

Fig 1: Turning Over Mud Guard - Front With Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the fog light assembly - front.
1. Disconnect the connector.
2. Remove the screws and clips, and remove the fog light assembly - front.
  - Sedan model

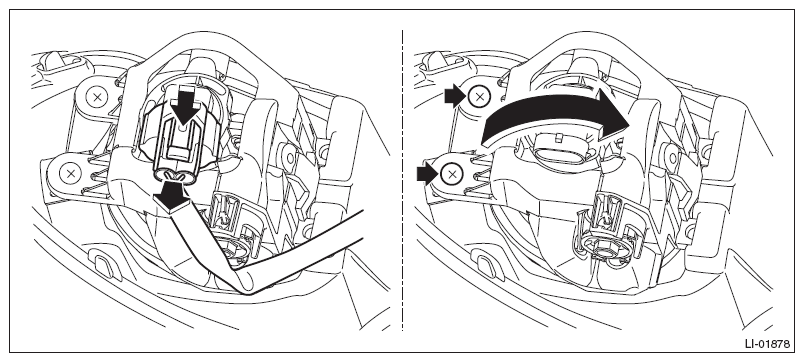

  Fig 2: Removing Fog Light Assembly - Front (Sedan Model)
  Courtesy of SUBARU OF AMERICA, INC.
  - OUTBACK model
  Fig 3: Locating Fog Light Assembly - Front Clips And Nuts (Outback Model)
  Courtesy of SUBARU OF AMERICA, INC.
