Reduction Driven Gear: Removal

  1. Remove the transmission from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>REMOVAL .
  3. Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>REMOVAL .
  4. Remove the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Clutch>REMOVAL .
  5. Remove the transfer reduction driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>REMOVAL .
  6. Remove the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Intermediate Case>REMOVAL .
  7. Remove the forward clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Forward Clutch Assembly>REMOVAL .
  8. Remove the snap ring.

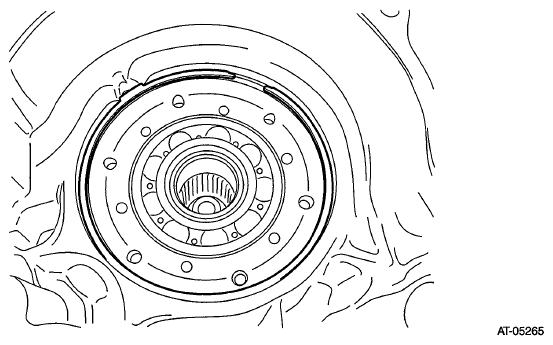

    Fig 1: Identifying CVT Reduction Driven Gear Snap Ring
    G06654605Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the reduction driven gear assembly.
    Fig 2: Identifying CVT Reduction Driven Gear Assembly
    G06654606Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the straight pin.
Fig 3: Locating Reduction Driven Gear Assembly Straight Pin
G06654607Courtesy of SUBARU OF AMERICA, INC.
