Forward Clutch Assembly: Removal

  1. Remove the transmission from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>REMOVAL .
  3. Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>REMOVAL .
  4. Remove the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Clutch>REMOVAL .
  5. Remove the transfer reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>REMOVAL .
  6. Remove the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Intermediate Case>REMOVAL .
  7. Remove the thrust needle bearing.

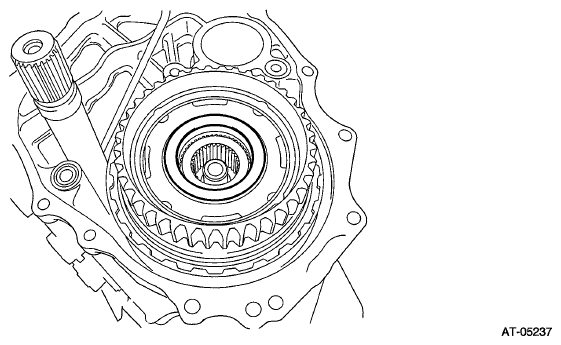

    Fig 1: Identifying Forward Clutch Assembly Thrust Needle Bearing
    G06654566Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the forward clutch assembly.
    Fig 2: Identifying Forward Clutch Assembly
    G06654567Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the washer.
Fig 3: Identifying Forward Clutch Assembly Washer
G06654568Courtesy of SUBARU OF AMERICA, INC.
