Front Reduction Driven Gear: Adjustment

If the ball bearing is attached, remove the bearing and shims. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Converter Case Cover>REMOVAL .

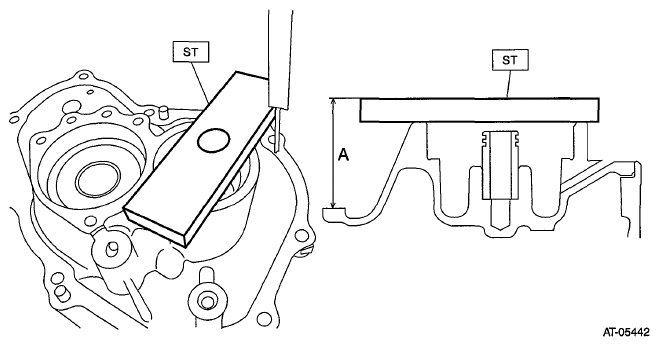

Using the ST, measure height "A" from the ST upper face to the mating surface of the case.
ST 398643600 GAUGE

Fig 1: Checking ST Upper Face And Case Mating Surface Height
Courtesy of SUBARU OF AMERICA, INC.

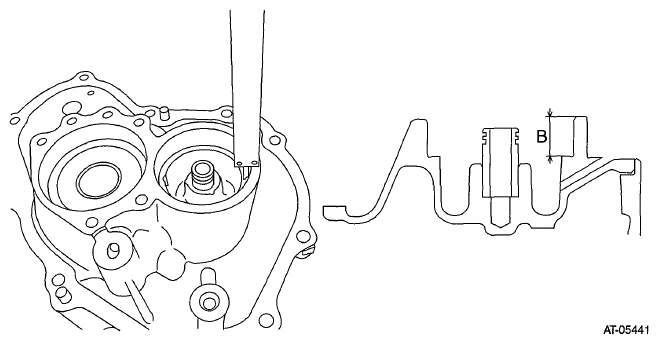

Measure depth "B" from the converter case cover upper face to the bearing catch surface.

Fig 2: Checking Converter Case Cover Upper Face And Bearing Catch Surface Depth
Courtesy of SUBARU OF AMERICA, INC.
Install the ball bearing to the reduction driven gear.
NOTE: Use a new ball bearing.

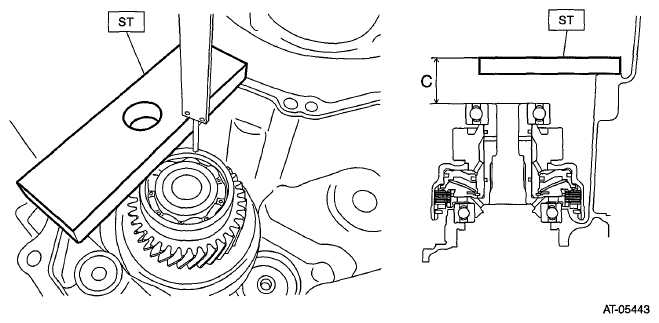

Measure depth "C" from the ST upper face to the bearing end face using the ST.
ST 398643600 GAUGE

Fig 3: Checking ST Upper Face And Bearing End Face Depth
Courtesy of SUBARU OF AMERICA, INC.

Calculate clearance "T" using the following formula.

Formula: T mm = (C - 15) - ((A - 15) - B)

[T in = (C - 0.591) - ((A - 0.591) - B)]

T: Clearance

A: Height from the ST upper face to the converter case mating surface

B: Depth from the converter case cover upper face to the bearing catch surface

C: Depth from the ST upper face to the bearing end face

15 mm (0.591 in): Thickness of ST

Select one to two shims so that the total thickness meets the value obtained from above.
