CVTF Cooler (With Warmer Function): Removal

CAUTION: If the CVTF and engine coolant is spilt over exhaust pipe, wipe it off with cloth to avoid emitting smoke or causing a fire.

1. Disconnect the ground cable from battery.
2. Drain engine coolant. Ref. to COOLING(H4DOTC)>Engine Coolant>REPLACEMENT .
3. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
4. Remove the harness clip.
   Fig 1: Identifying CVTF Cooler (With Warmer Function)

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the engine coolant outlet hose, engine coolant inlet hose, CVTF inlet hose and CVTF outlet hose.

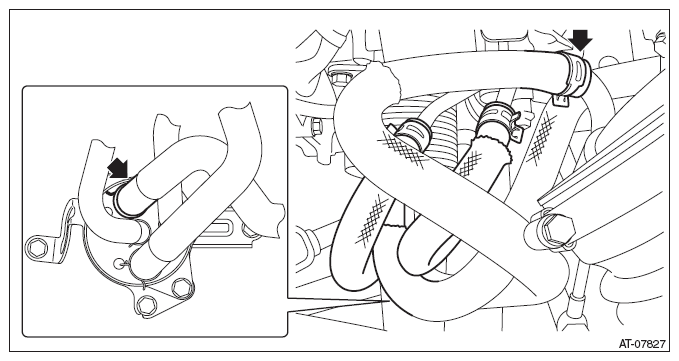

   Fig 2: Locating Engine Coolant Outlet, Inlet And CVTF Hoses

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the CVTF cooler (with warmer feature).
   Fig 3: Locating CVTF Cooler Bolts

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the intake manifold, EGR valve, and the insulator. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL . Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR Control Valve>REMOVAL .
8. Disconnect the engine coolant inlet hose.

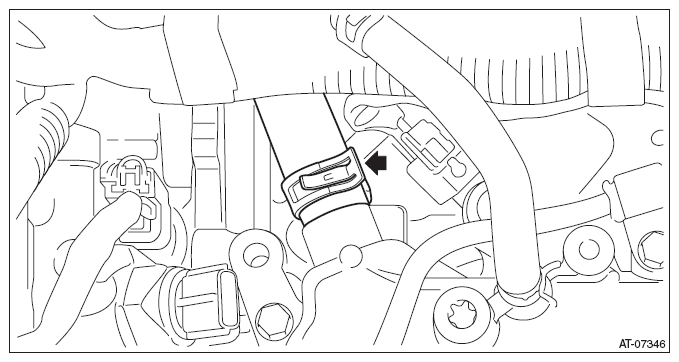

Fig 4: Locating Engine Coolant Inlet Hose

Courtesy of SUBARU OF AMERICA, INC.
