EGR Control Valve: Removal

  1. Remove the collector cover.
    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
    Fig 1: Removing Collector Cover
    G10403792Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  5. Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. Ref. to COOLING(H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  6. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  7. Remove the EGR pipe. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR Pipe>REMOVAL .

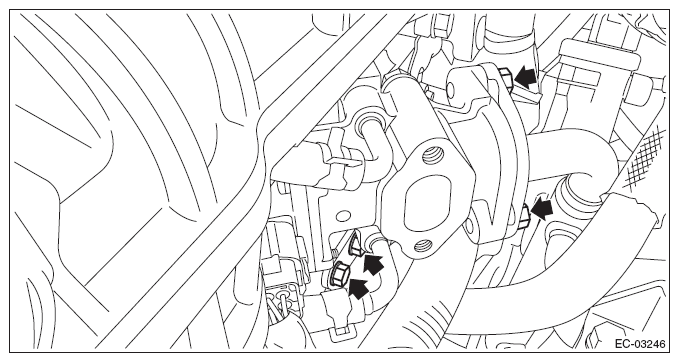

  8. Remove the bolts which secure the EGR cooler to the EGR control valve, and remove the bolts which secure the EGR control valve bracket A to the EGR control valve bracket B.
    Fig 2: Locating EGR Cooler To EGR Control Valve With Bolts
    G09479966Courtesy of SUBARU OF AMERICA, INC.

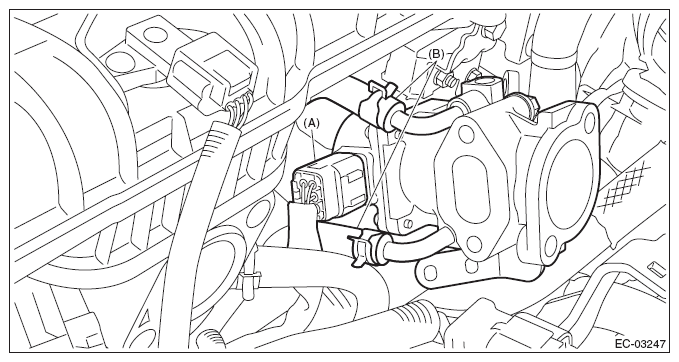

  9. Disconnect the connector (A) and preheater hose (B) from EGR control valve, and remove the EGR control valve.
Fig 3: Disconnecting Connector And Preheater Hose From EGR Control Valve
G09479967Courtesy of SUBARU OF AMERICA, INC.
