Side Airbag Module: Installation
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .

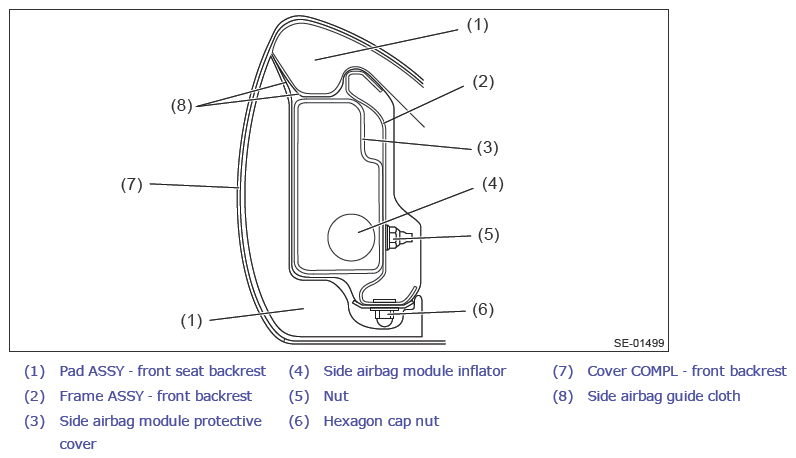

- Make sure that the side airbag module is installed as shown in the figure.
- Be careful not to stain or damage the cover COMPL - front backrest during assembly.
- Do not reuse hog rings.
- Secure the hog ring using hog ring pliers.
- Install the hog rings to the specified points securely and make sure that there is no wrinkle or twisting on the cover COMPL - front backrest.
- Before installation, inspect the following items and replace any faulty part with a new one.
- Make sure that there is no foreign matter on side airbag module.
- Front seat, airbag module and mounting bracket are damaged or deformed.
- Harness and/or connector is cracked, deformed or open.
- Harness wire is exposed.
- Install the side airbag module to the frame assembly - front backrest.
Tightening torque:
Side airbag module: 6 N.m (0.61 kgf-m, 4.4 ft-lb)
- Assemble the front seat. Ref. to SEATS>Front Seat>ASSEMBLY .
- Install the front seat assembly to the body. Ref. to SEATS>Front Seat>INSTALLATION .
- Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
