Front Seat: Assembly

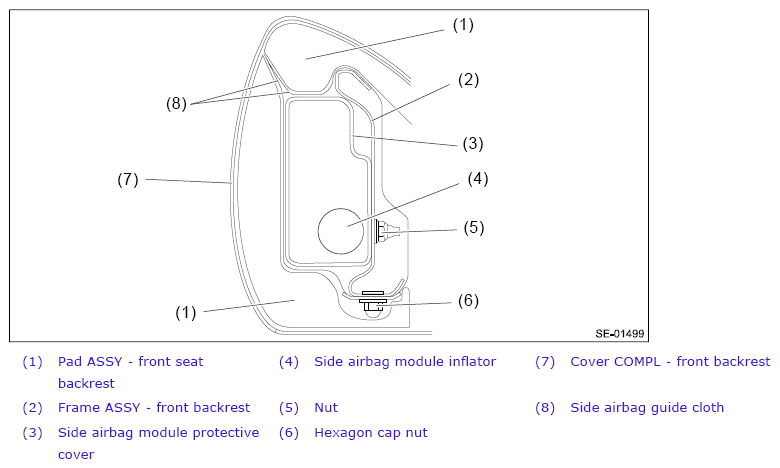

Fig 2: Identifying Side Airbag Module Related Components

Courtesy of SUBARU OF AMERICA, INC.

Besides, if the cover COMPL - front backrest is not installed securely, the side airbag may not be activated properly, therefore keep strictly to the following procedures.

• Be careful not to stain or damage the cover COMPL - front backrest during assembly.
• Do not reuse hog rings.
• Secure the hog ring using hog ring pliers.
• Install the hog rings to the specified points securely and make sure that there is no wrinkle or twisting on the cover COMPL - front backrest.

1. Install the seat heater module.
   CAUTION:

   • If the seat heater module is removed, replace the pad assembly with a new part. (Driver's seat)
   • If the seat heater module is removed, replace the seat cushion pad - frame assembly with a new part. (Passenger's seat)
   • If the seat heater module is reused, remove the polyurethane section from the reverse side completely and attach a new pad assembly with a double-sided tape.

   Preparation items:

   Double-sided tape: NITTO DENKO 501L or equivalent

2. Make sure that there is no foreign matter on side airbag module.
3. Assemble the seat cover.
   1. Adjust so that the left and right clearances between wire and seat pad become equal, and mark the seat pad.
      Fig 3: Identifying Mark Seat Pad

      Courtesy of SUBARU OF AMERICA, INC.
   2. Mark the center of the wire on the pad side to which the hog ring is attached.
      Fig 4: Identifying Mark Center Of Wire On Pad Side To Hog Ring

      Courtesy of SUBARU OF AMERICA, INC.
   3. Insert the wire into the seat cover, and align the wire with the position marked in step 1).
      Fig 5: Inserting Wire Into Seat Cover

      Courtesy of SUBARU OF AMERICA, INC.
   4. Mark the wire on the seat cover side according to the markings on the seat pad.
      Fig 6: Marking Wire On Seat Cover Side

      Courtesy of SUBARU OF AMERICA, INC.
   5. Perform steps 1) - 4) to all sections to which the hog rings are attached.

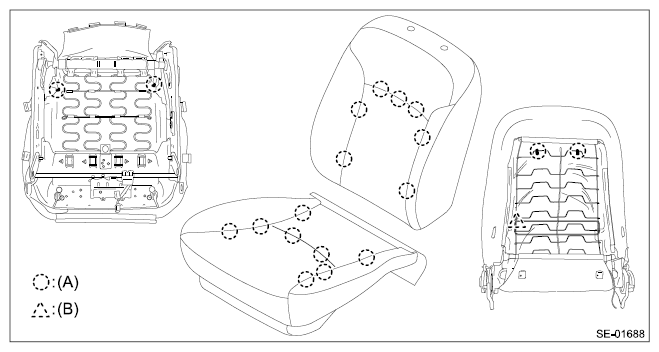

   6. Make sure that all hog rings (A) are attached securely.
   7. Make sure that the hog ring (B) (10-WAY model) is attached securely.
   Fig 7: Identifying Hog Rings

   Courtesy of SUBARU OF AMERICA, INC.
4. Assemble remaining parts in the reverse order of disassemble.
   NOTE:

   • When installing the seat belt inner - front, follow the procedures described in the seat belt section. Ref. to SEAT BELT SYSTEM>Front Seat Belt>INSTALLATION .
   • Install the backrest assembly and seat cushion assembly in the following procedure.
     1. Temporarily tighten the four reclining hinge bolts.
     2. Place the backrest in the most upright position.
     3. Tighten the reclining hinge bolts in order from (1) to (4) two or three times, until they reach the specified torque.
   Fig 8: Locating Reclining Hinge Bolts

   Courtesy of SUBARU OF AMERICA, INC.

   Tightening torque:

   Refer to "COMPONENT" of "General Description". Ref. to SEATS>General Description>COMPONENT>FRONT SEAT .

5. If any wrinkles are found after the assembly of the seat cover, finish the seat cover with iron.
   1. Place the wet towel on wrinkles.
      Fig 9: Placing Wet Towel On Wrinkles

      Courtesy of SUBARU OF AMERICA, INC.
   2. Touch up with warm iron.
      CAUTION: Keep moving the iron, otherwise the seat cover surface can be damaged.
      NOTE: This method is available for genuine leather, synthetic leather, cloth, etc.
   Fig 10: Moving Iron On Seat Cover Surface

   Courtesy of SUBARU OF AMERICA, INC.
6. Install connectors located under the front seat.

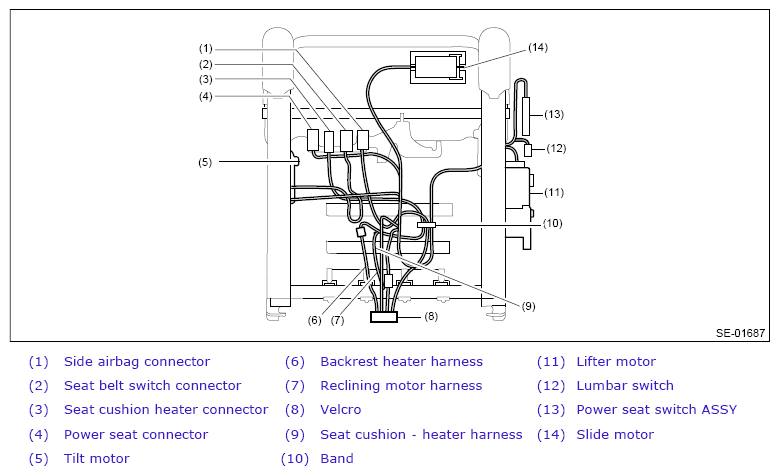

   • Power seat
   Fig 11: Identifying Power Seat Related Components

   Courtesy of SUBARU OF AMERICA, INC.

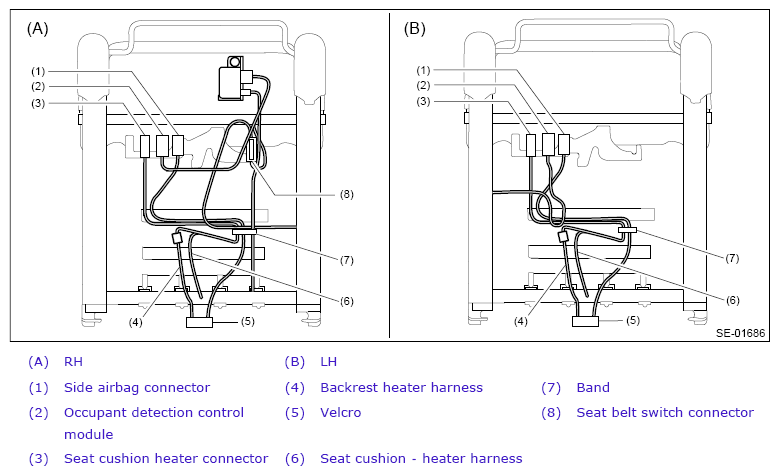

   • Manual seat
   Fig 12: Identifying Manual Seat Related Components

   Courtesy of SUBARU OF AMERICA, INC.
7. Install the seat assembly.
   CAUTION:

   • The seat mounting bolts differ between the front mounting points and the rear mounting points. Make sure that you are using correct bolts at correct positions.
   • Tighten the slide rail installing bolts in the order as shown in the figure, in several steps by gradually increasing the torque until they reach the specified torque.
     Fig 13: Front Seat Mounting Bolts Tightening Sequence

     Courtesy of SUBARU OF AMERICA, INC.
   • Front (bolt A): Washer diameter 22 mm (0.87 in)
   • Rear (bolt B): Washer diameter 26 mm (1.02 in)

   Tightening torque: 53 N.m (5.4 kgf-m, 39.1 ft-lb)
