Relay and Fuse: Location

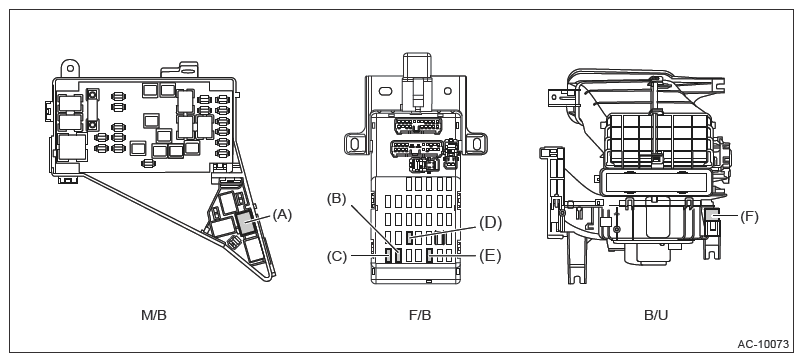

Fig 1: Identifying HVAC System Relay And Fuse Components

Courtesy of SUBARU OF AMERICA, INC.

Main Fuse Box	A/C relay	(A)
Relay & fuse box	Fuse 15 A (blower motor relay)	(B)
	Fuse 15 A (blower motor relay)	(C)
	Fuse 7.5 A (A/C control panel, A/C relay, pressure switch and blower motor relay)	(D)
	Fuse 7.5 A (A/C control panel)	(E)
Blower motor unit	Blower motor relay	(F)

NOTE: For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>Power Supply Circuit .
