Power Supply Circuit

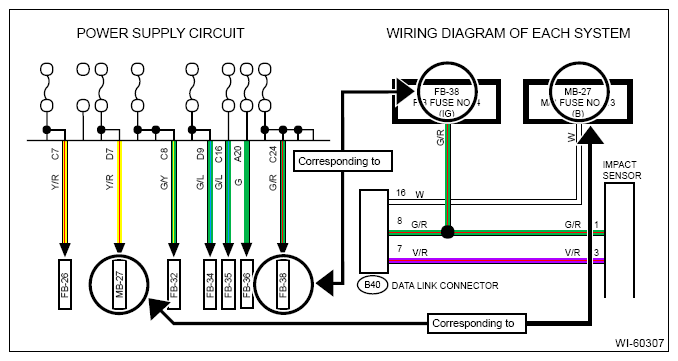

Circuits are described to indicate the power supply in the wiring diagram of each system. "MB-5", "MB-6", etc., which are used as power-supply symbols throughout the text, correspond with those shown in the "DC POWER SUPPLY CIRCUIT" in the wiring diagram of each system. Accordingly, using the DC power supply circuit and the wiring diagram of each system permits service personnel to understand the entire electrical arrangement of the system.
