Low-Pressure Hose

  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>Refrigerant Recovery Procedure>PROCEDURE .
  2. Remove the air intake boot. (Non-turbo model) Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>REMOVAL .
  3. Remove the intercooler. (Turbo model) Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  4. Remove the bolts and remove the hose - pressure suction.
    CAUTION:
    • Do not apply excessive force to the hose.
    • Seal the disconnected hose, compressor and engaging part of expansion valve with a plug or vinyl tape to prevent foreign matter from entering.

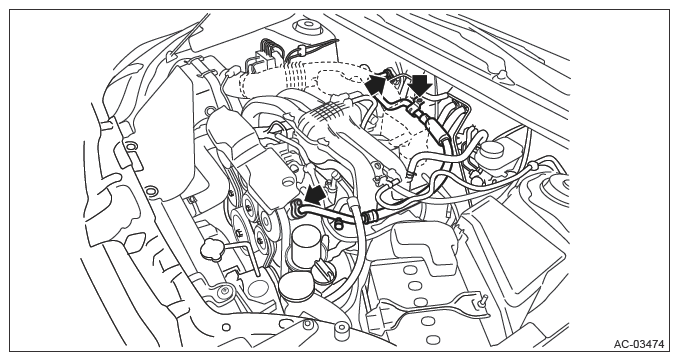

Fig 1: Locating Pressure Suction Hose Bolts
G11268271Courtesy of SUBARU OF AMERICA, INC.
