Pitching Stopper

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>REMOVAL .
  3. Remove the pitching stopper.

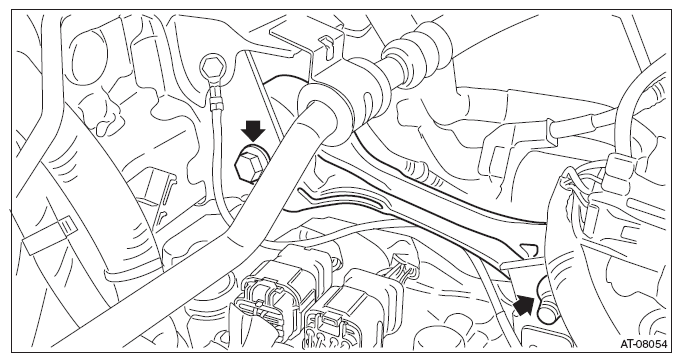

Fig 1: Locating Pitching Stopper Bolt And Nut
G09481419Courtesy of SUBARU OF AMERICA, INC.
