Transmission Rear CROSSMEMBER And Rear Cushion Rubber

WARNING: This page is about a different variant/trim than selected.

Attach the rear cushion rubber to the transmission.
Tightening torque:

40 N.m (4.1 kgf-m, 29.5 ft-lb)

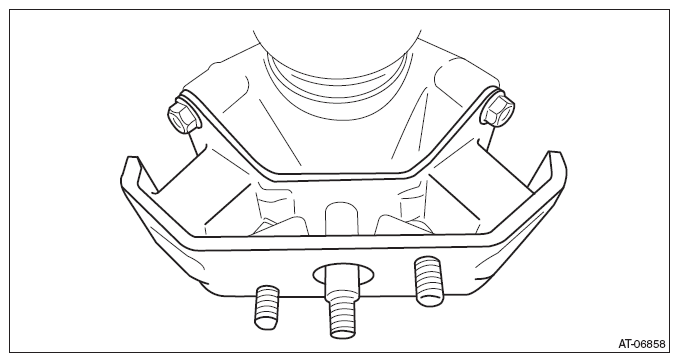

Fig 1: Attaching Rear Cushion Rubber To Transmission
Courtesy of SUBARU OF AMERICA, INC.
Install the crossmember.
Tightening torque:

T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

T2: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

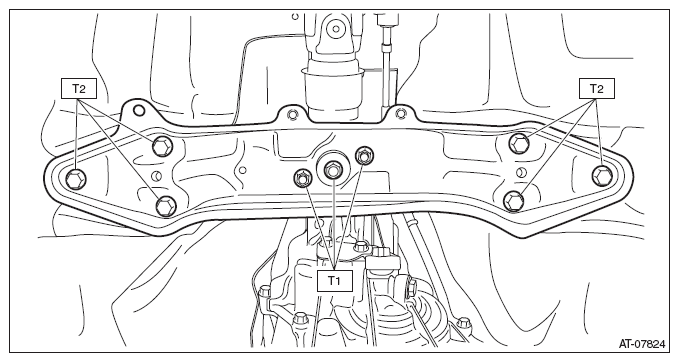

Fig 2: Identifying Crossmember Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission jack.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Installing Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Ref. to EXHAUST(H4DO)>Center Exhaust Pipe>INSTALLATION .
Install the under cover front - transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Connect the battery ground terminal.
