Center Exhaust Pipe: Installation

WARNING: This page is about a different variant/trim than selected.

Install the center exhaust pipe upper cover to the center exhaust pipe.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)
Temporarily tighten the nuts which secure the center exhaust pipe to the front exhaust pipe.
NOTE: Use a new gasket.

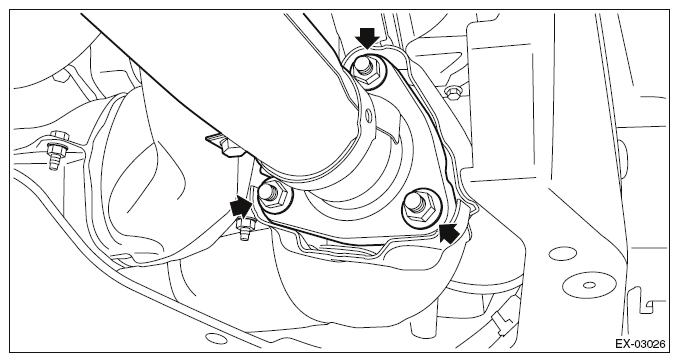

Fig 1: Locating Center And Front Exhaust Pipe Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts, springs, and nuts which secure the rear exhaust pipe to the center exhaust pipe.
NOTE: Use a new gasket.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 2: Locating Rear And Center Exhaust Pipe Bolts, Springs And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which secure the center exhaust pipe to the hanger bracket.
Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

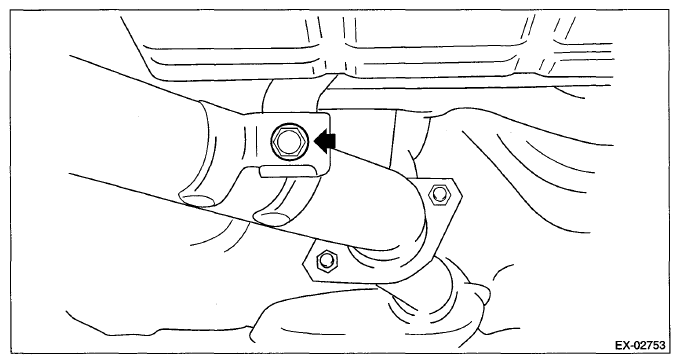

Fig 3: Locating Center Exhaust Pipe And Hanger Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Tighten the nuts which secure the center exhaust pipe to the front exhaust pipe.
Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Fig 4: Locating Center And Front Exhaust Pipe Nuts
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
