Transmission Harness

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>REMOVAL .
Disconnect the following connectors.
- Transmission harness connectors
- Inhibitor harness connector
- Transmission radio ground terminal

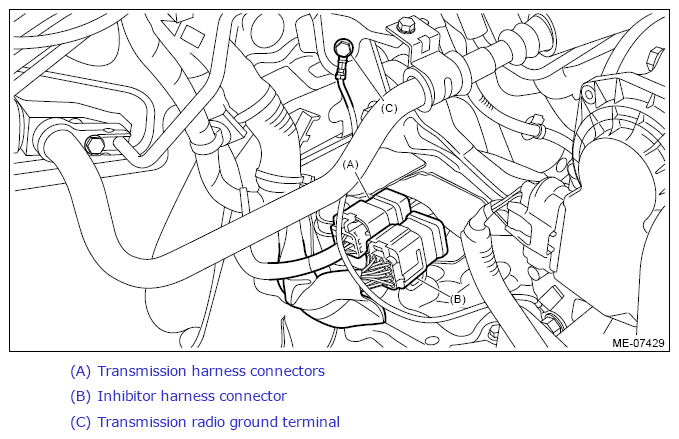

Fig 1: Identifying Transmission Harness Connectors, Inhibitor Harness Connector And Transmission Radio Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper.

Fig 2: Locating Pitching Stopper Bolt And Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the air breather hose from the pitching stopper bracket, and then remove the pitching stopper bracket and transmission radio ground cord.

Fig 3: Locating Pitching Stopper Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover.

Fig 4: Locating Transmission Case Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission harness stay and ground terminal.

Fig 5: Locating Transmission Harness Stay And Ground Terminal Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission harness connector from the harness stay.
Clean the transmission exterior.
Set the ST on the vehicle.
ST 18761AA010 SHEET SPECIAL TOOL

Fig 6: Setting ST On Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Remove the valve cover and gasket.

Fig 7: Identifying Valve Cover And Gasket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission harness connector from the control valve body.
Remove the transmission harness from the valve cover.

Fig 8: Locating Transmission Harness From Valve Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the transmission harness.

Fig 9: Locating O-Ring From Transmission Harness

Courtesy of SUBARU OF AMERICA, INC.
