Oil Pump Chain: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
Remove the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Torque Converter Assembly>REMOVAL .
Remove the oil pump chain cover.
NOTE: Oil pump chain cover may be hard to remove because the driven sprocket is installed to the shaft side of the oil pump. Do not remove it forcibly. Remove it while holding the driven sprocket by hand.

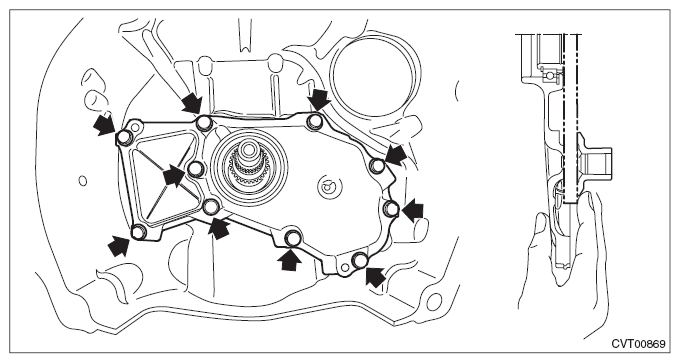

Fig 1: Locating Oil Pump Chain Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.

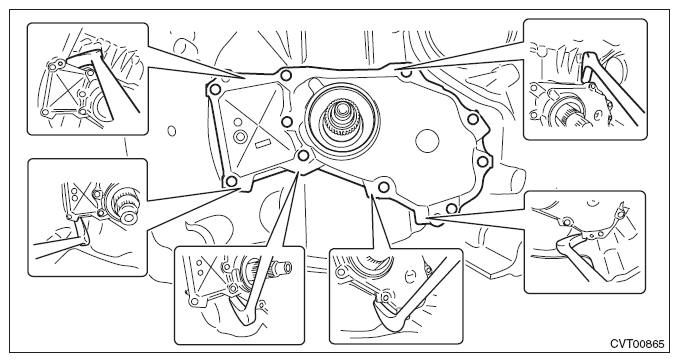

Fig 2: Removing Oil Pump Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the seal rings.

Fig 3: Locating Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Remove the driven sprocket from oil pump chain cover to remove the oil pump chain.
NOTE:
- The driven sprocket is replaced as an assembly only, because it is a non-disassembly part.
- If the ball bearing is removed from the driven sprocket, replace with a new part.

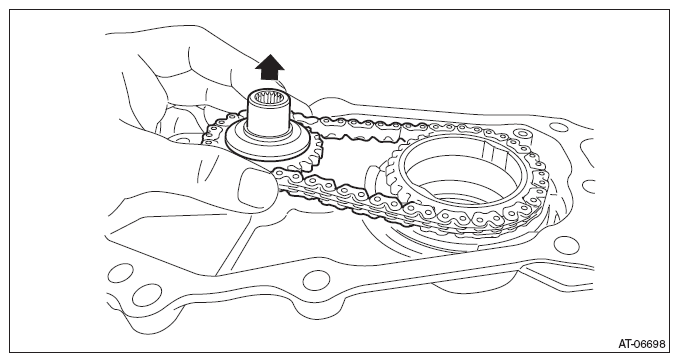

Fig 4: Removing Driven Sprocket From Oil Pump Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

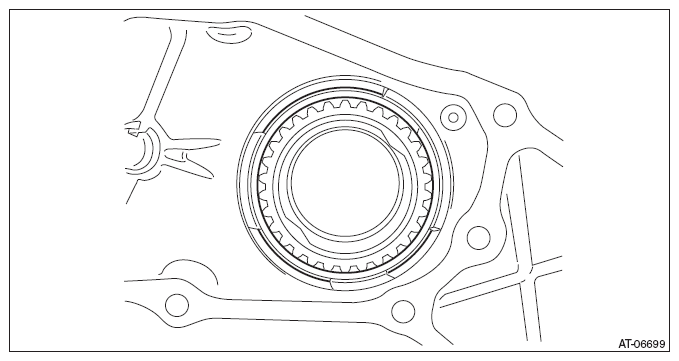

Fig 5: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the drive sprocket.

Fig 6: Removing Drive Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal from the oil pump chain cover.

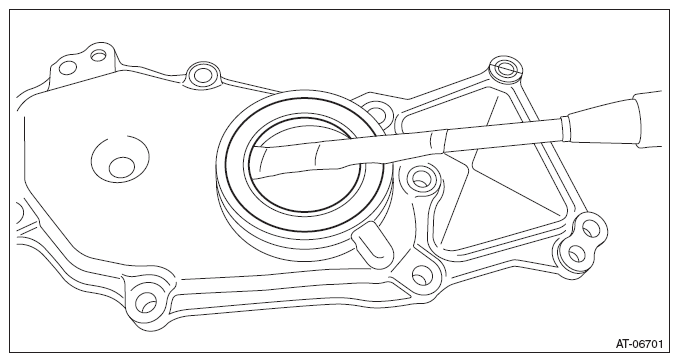

Fig 7: Removing Oil Seal From Oil Pump Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
