Torque Converter Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Pull out the torque converter assembly horizontally.
    CAUTION: Do not scratch the inside of engaging parts.

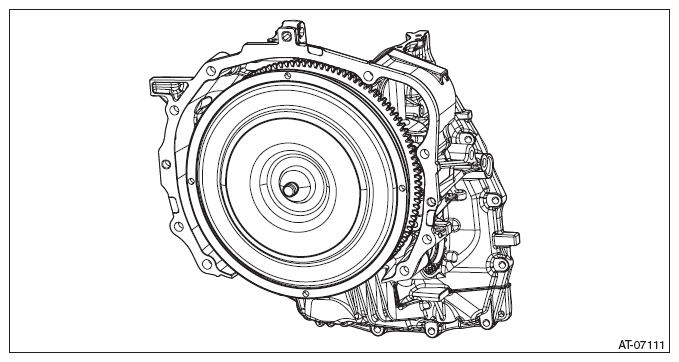

    Fig 1: Identifying Torque Converter Assembly
    G09481554Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the input shaft.
