CVTF Cooler (With Warmer Function): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: If the CVTF and engine coolant is spilt over exhaust pipe, wipe it off with cloth to avoid emitting smoke or causing a fire.

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Drain engine coolant. Ref. to COOLING(H4DO)>Engine Coolant>REPLACEMENT .
Remove the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>REMOVAL .
Remove the harness bracket, and then remove the engine harness connector.

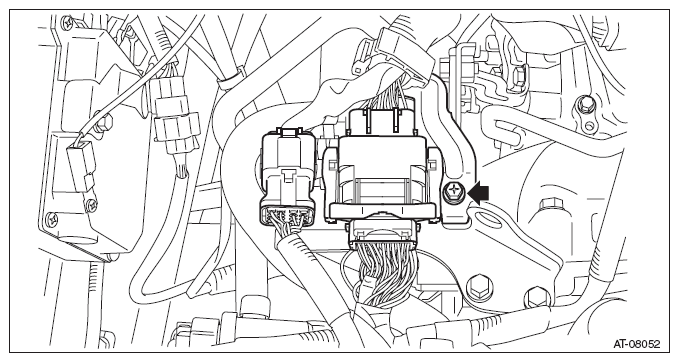

Fig 1: Locating Engine Harness Bracket Screw
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the EGR control valve harness connector, throttle position sensor harness connector and manifold absolute pressure sensor harness connector.
Remove the engine rear hanger.

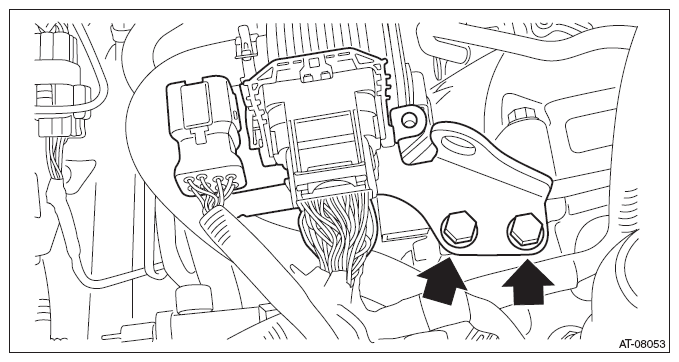

Fig 2: Locating Engine Rear Hanger Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine coolant outlet hose.

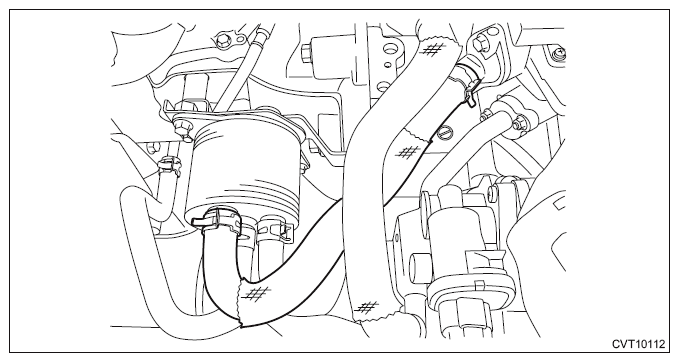

Fig 3: Removing Engine Coolant Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF inlet hose and outlet hose.

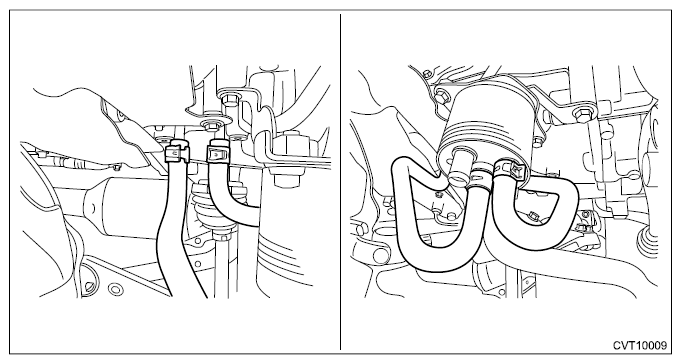

Fig 4: Removing CVTF Inlet Hose And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the electric power steering harness from the clip.

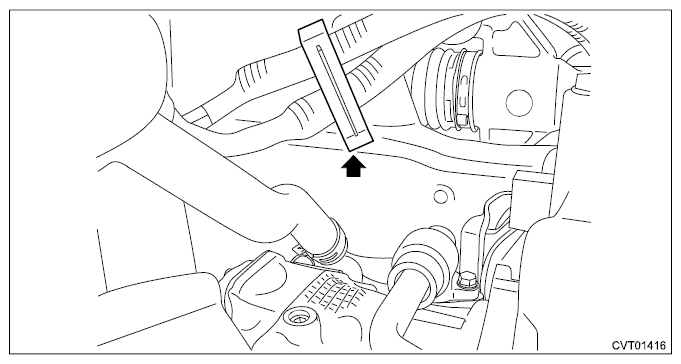

Fig 5: Locating Electric Power Steering Harness From Clip
Courtesy of SUBARU OF AMERICA, INC.

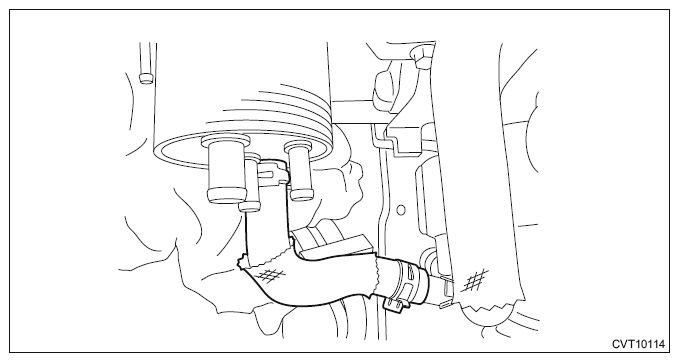

Remove the engine coolant inlet hose.

Fig 6: Removing Engine Coolant Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF cooler (with warmer feature) from the transmission.

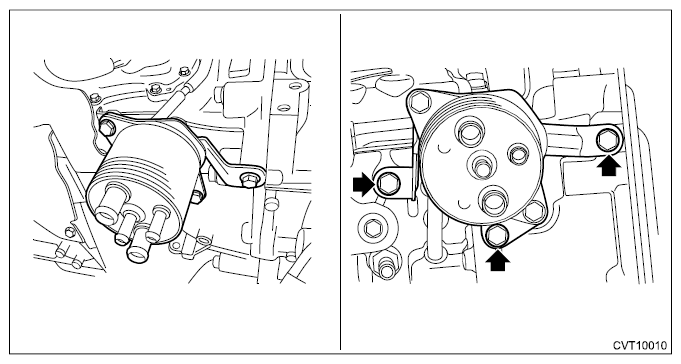

Fig 7: Locating CVTF Cooler (With Warmer Feature) Bolts

Courtesy of SUBARU OF AMERICA, INC.
