Oil Pan Upper

• Non-turbo model

Tightening torque:

T1: 5 N.m (0.5 kgf-m, 3.7 ft-lb)

T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T3: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

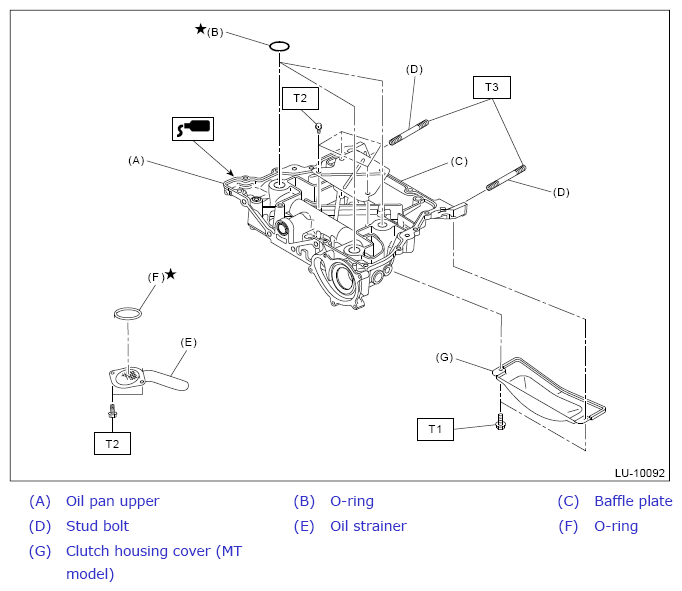

Fig 1: Identifying Oil Pan Upper Components With Torque Specifications (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

• Turbo model

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

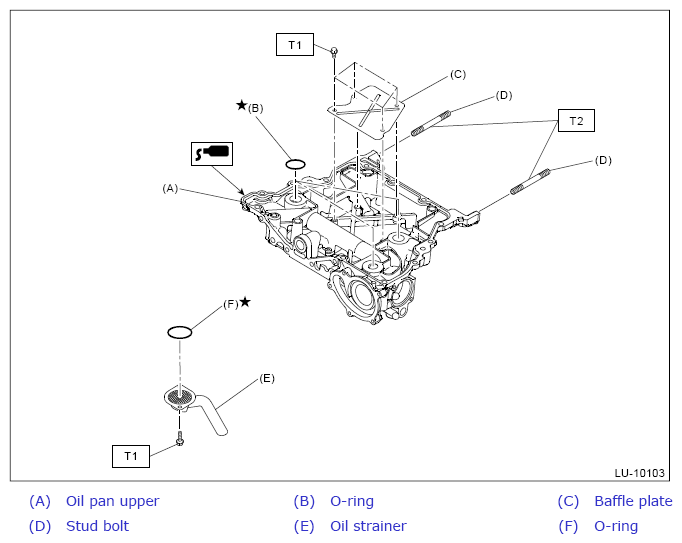

Fig 2: Identifying Oil Pan Upper Components With Torque Specifications (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

5±1 mm (0.1969±0.0394 in)

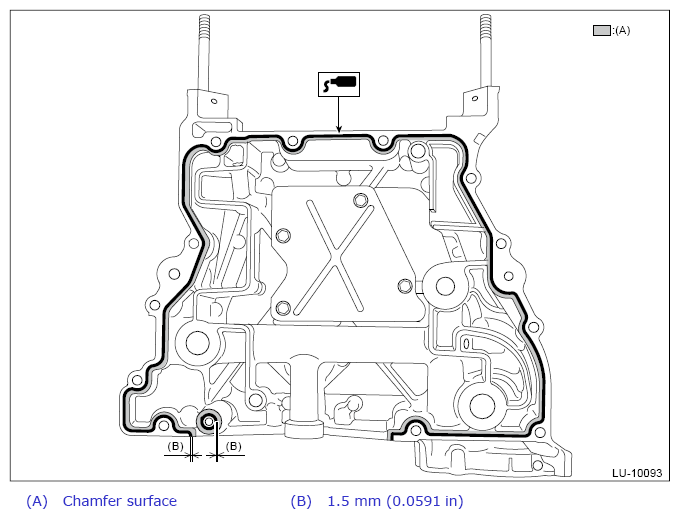

Fig 3: Identifying Oil Pan Upper Mating Surface Liquid Gasket Applying Area

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

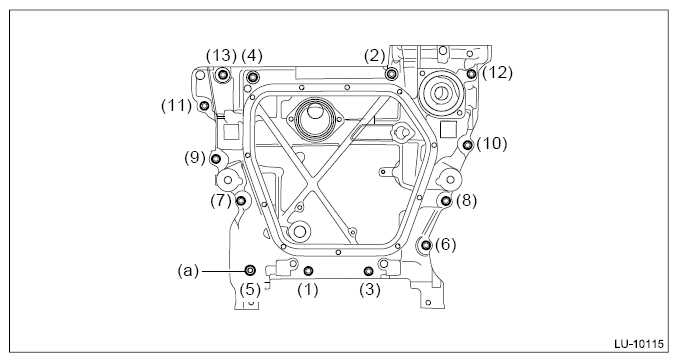

Fig 4: Oil Pan Upper Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.
