Idler Pulley

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. Ref. to MECHANICAL(H4DO)>V-belt>REMOVAL>V-BELT .
  2. Remove the idler pulley.

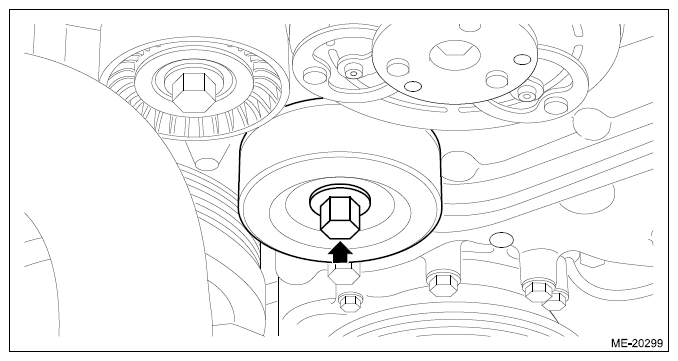

Fig 1: Locating Idler Pulley Bolt
G11263756Courtesy of SUBARU OF AMERICA, INC.
