Crankshaft And Piston

WARNING: This page is about a different variant/trim than selected.

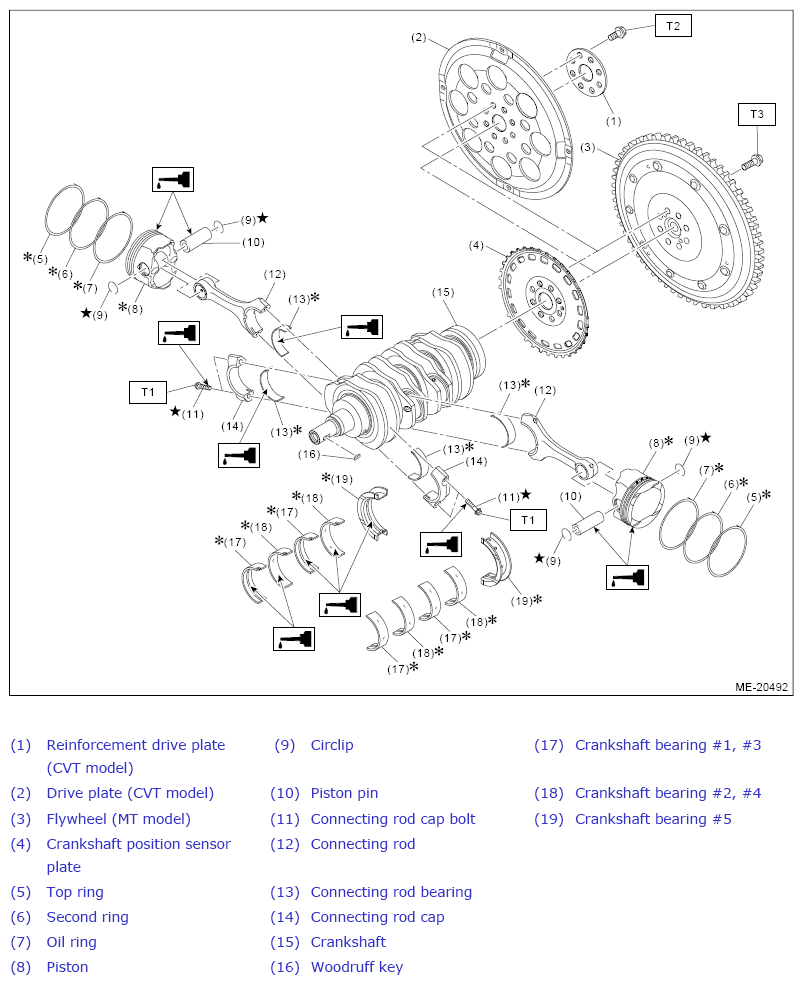

Fig 1: Exploded View Of Crankshaft And Piston With Torque Specification
G11263641Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1:  Ref. to MECHANICAL(H4DO)>Cylinder Block>INSTALLATION .

T2:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Drive Plate>INSTALLATION .

T3:  Ref. to CLUTCH SYSTEM>Flywheel>INSTALLATION .
