Drive Plate: Installation

WARNING: This page is about a different variant/trim than selected.

Temporarily install the drive plate and reinforcement drive plate.
NOTE: Align the knock pin hole of the crankshaft position sensor plate to the knock pin of the crankshaft to secure the knock pin.
Set the ST.
NOTE: Set the ST to the drive plate referring to the illustration.

ST 498497300 CRANKSHAFT STOPPER

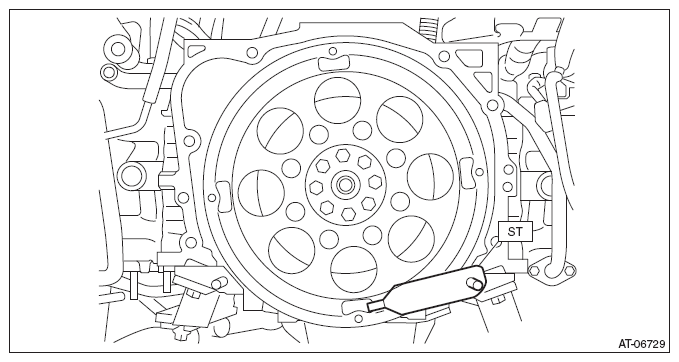

Fig 1: Setting ST To Drive Plate
Courtesy of SUBARU OF AMERICA, INC.
Tighten the drive plate mounting bolt in two stages.
1. Tighten the drive plate mounting bolt.
  Tightening torque:

  30 N.m (3.1 kgf-m, 22.1 ft-lb)
2. While checking the tightening angle with the angle gauge, tighten the drive plate mounting bolts to the specified angle.
  Tightening angle:

  30° - 35°

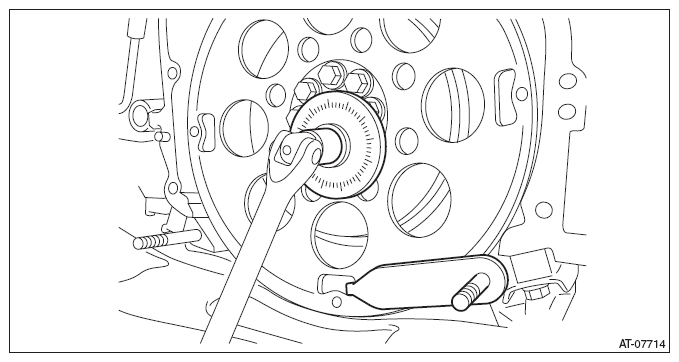

  Fig 2: Tightening Drive Plate Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>INSTALLATION .
