Chain Cover: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the sensor cover to the chain cover.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

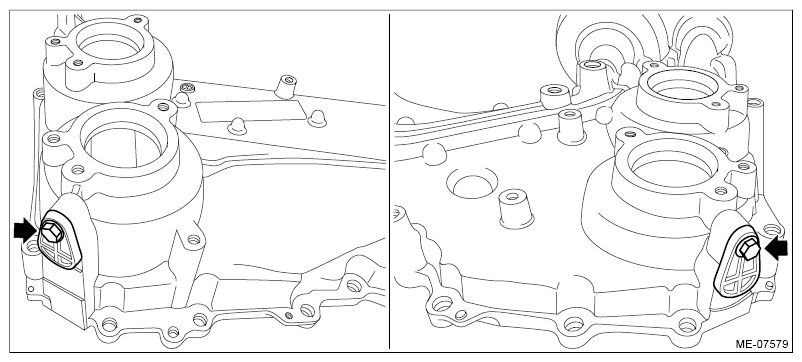

    Fig 1: Locating Sensor Cover Bolts
    G11263799Courtesy of SUBARU OF AMERICA, INC.
  2. Install the actuator cover to chain cover.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

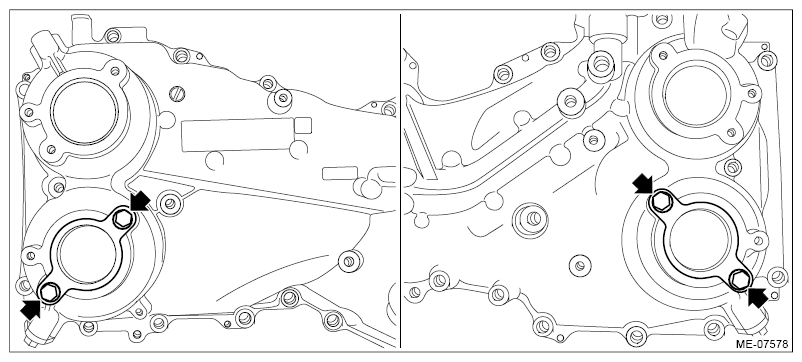

    Fig 2: Locating Actuator Cover Bolts
    G11263798Courtesy of SUBARU OF AMERICA, INC.
  3. Install the camshaft position sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Camshaft Position Sensor>INSTALLATION .
  4. Install the oil control solenoid. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Oil Control Solenoid>INSTALLATION .
  5. Install the engine oil temperature sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Engine Oil Temperature Sensor>INSTALLATION .
  6. Install the oil pressure switch. Ref. to LUBRICATION(H4DO)>Oil Pressure Switch>INSTALLATION .
  7. Install the engine oil filter and the oil pump union. Ref. to LUBRICATION(H4DO)>Engine Oil Filter>INSTALLATION .
  8. Install the oil filler cap.
