Oil Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

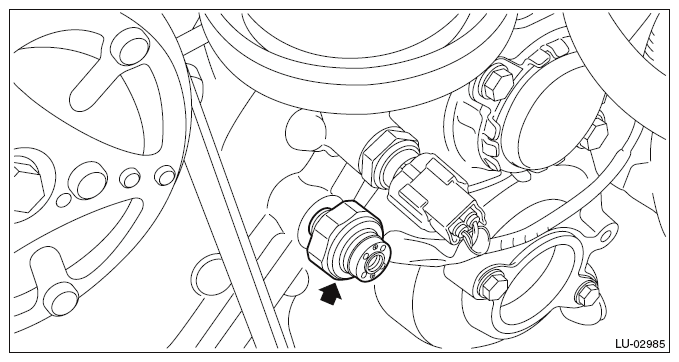

Fig 1: Identifying Oil Pressure Switch Threads Liquid Gasket Applying Area
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch to the chain cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 2: Locating Chain Cover Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal to the oil pressure switch.
NOTE: The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening torque:

1.5 N.m (0.2 kgf-m, 1.1 ft-lb)

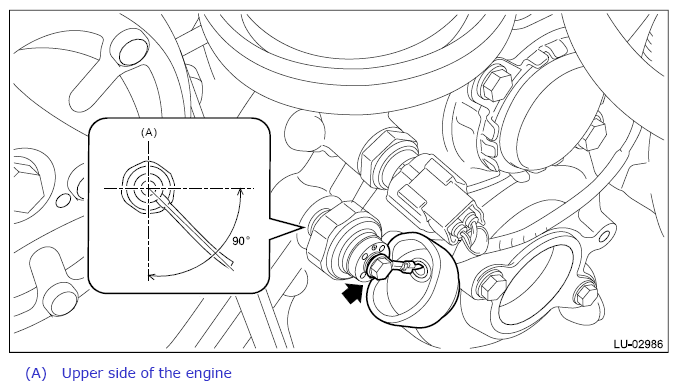

Fig 3: Checking Oil Pressure Switch Terminal Tightening Angle
Courtesy of SUBARU OF AMERICA, INC.
Attach the rubber cap.

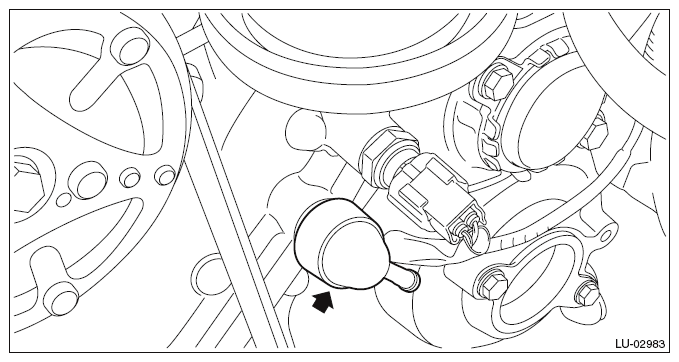

Fig 4: Locating Oil Pressure Switch Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
