Water Pipe Assembly RH

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DO)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the front exhaust pipe. Ref. to EXHAUST(H4DO)>Front Exhaust Pipe>REMOVAL .
  4. Disconnect the water hose (A) from the water pipe assembly RH, and remove the bolt (B) securing the water pipe assembly RH to the cam carrier RH.

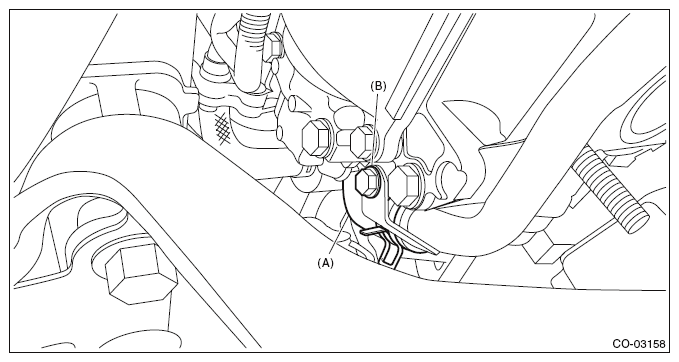

    Fig 1: Identifying Water Hose And Bolt
    G09476398Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolt (A) which secures the water pipe assembly RH to the cylinder head RH.
  6. Disconnect the water pipe hose RH (B) from oil pan upper, and remove the water pipe assembly RH.

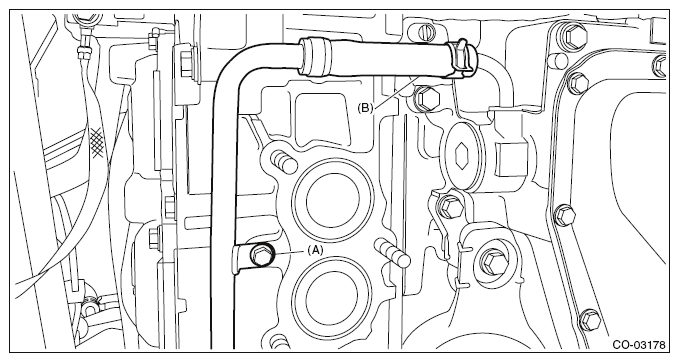

    Fig 2: Identifying Water Pipe Hose (RH) And Bolt
    G09476399Courtesy of SUBARU OF AMERICA, INC.
