Draining Of Engine Coolant

WARNING: This page is about a different variant/trim than selected.
  1. Lift up the vehicle.
  2. Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  3. Remove the drain plug to drain engine coolant into container.
    NOTE: Remove the radiator cap so that engine coolant will drain faster.

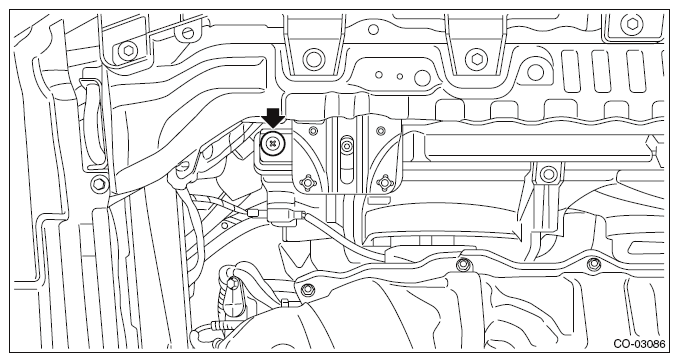

    Fig 1: Locating Engine Coolant Drain Plug
    G09476392Courtesy of SUBARU OF AMERICA, INC.
  4. Install the drain plug.
    NOTE: Use new O-rings.
  5. Install the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
