CVTF Cooler (With Warmer Feature) Side

WARNING: This page is about a different variant/trim than selected.
  1. Drain engine coolant. Ref. to COOLING (H4DO)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  2. Lower the vehicle.
  3. Remove the clip (A) from the air intake boot.
  4. Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.
  5. Loosen the clamp (C) which secures the throttle body to the air intake boot.
    Fig 1: Identifying Air Intake Duct Components
    G11263279Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.
    Fig 2: Removing Air Intake Boot
    G11263280Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the engine coolant hose from the thermostat cover.
    Fig 3: Locating Engine Coolant Hose Clamp
    G11264199Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the thermostat cover, and then remove the gasket and thermostat.

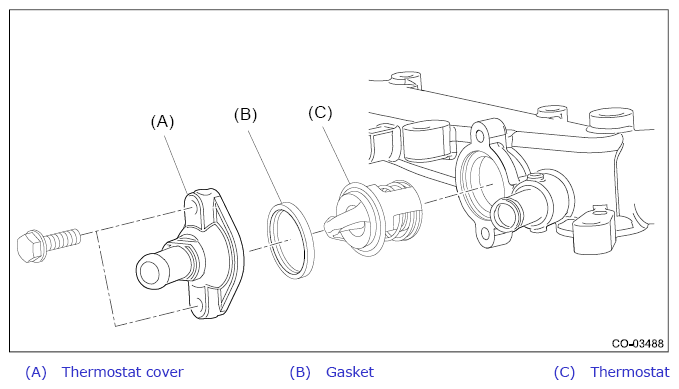

    Fig 4: Removing Thermostat Cover, Gasket And Thermostat
    G11264200Courtesy of SUBARU OF AMERICA, INC.
