Engine Side

WARNING: This page is about a different variant/trim than selected.
  1. Install a gasket to thermostat.
    NOTE: Use a new gasket.
  2. Install the thermostat and thermostat cover.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

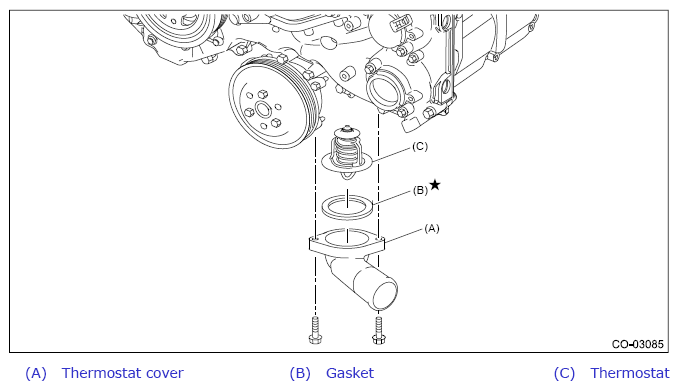

    Fig 1: Removing Thermostat Cover, Gasket And Thermostat
    G11264201Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the radiator outlet hose to thermostat cover.

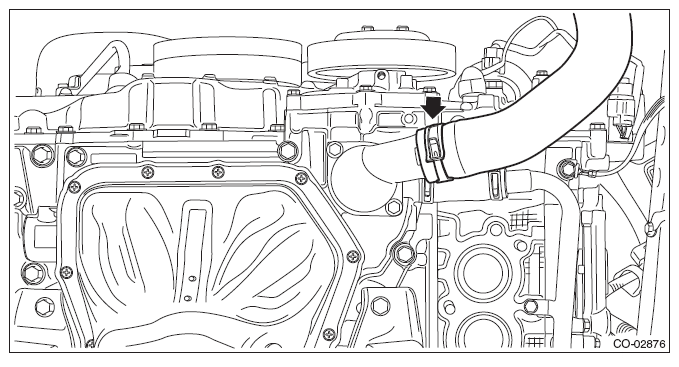

    Fig 2: Locating Radiator Outlet Hose Clamp
    G08315740Courtesy of SUBARU OF AMERICA, INC.
  4. Install the front exhaust pipe. Ref. to EXHAUST(H4DO)>Front Exhaust Pipe>INSTALLATION .
  5. Lower the vehicle.
  6. Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .
  7. Fill engine coolant. Ref. to COOLING(H4DO)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
