Front Exhaust Pipe: Installation

WARNING: This page is about a different variant/trim than selected.

Set the front exhaust pipe and center exhaust pipe to the cylinder head, and temporally tighten the nuts which secure the front exhaust pipe to the cylinder head.
NOTE: Use a new gasket.

Fig 1: Locating Front Exhaust Pipe Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts, springs, and nuts which secure the center exhaust pipe to the rear exhaust pipe.
Use a new gasket.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 2: Locating Rear And Center Exhaust Pipe Bolts, Springs And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which secure the center exhaust pipe to the hanger bracket.
Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

Fig 3: Locating Center Exhaust Pipe And Hanger Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Tighten the nuts which hold front exhaust pipe to cylinder heads.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

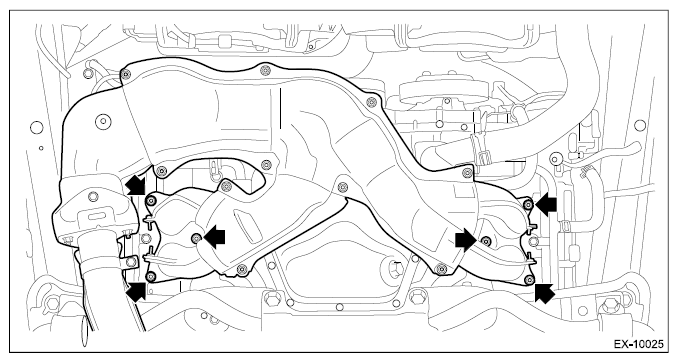

Fig 4: Locating Front Exhaust Pipe And Cylinder Head Nuts
Courtesy of SUBARU OF AMERICA, INC.

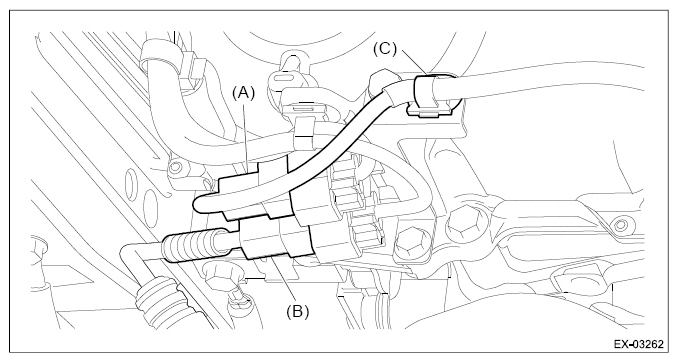

Connect the front oxygen (A/F) sensor connector (A) and rear oxygen sensor connector (B), and fasten the harness with the clip (C).

Fig 5: Identifying Rear Oxygen Sensor Connector, Clip And Front Oxygen Sensor Connector (A/F)
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
Lower the vehicle.
Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .
